Tesmec - Continous Linear Puller (CLP)
FromTesmec S.p.A
The current method for replacing overhead lines conductors involves attaching a new conductor to the existing conductor, placing conductor travellers at each intermediate structure and then winching in the existing conductor and coiling it onto an old drum.
Most popular related searches
Tesmec have developed a machine that reduces costs and time offering the higher level of reliability and safety during reconductoring operations:

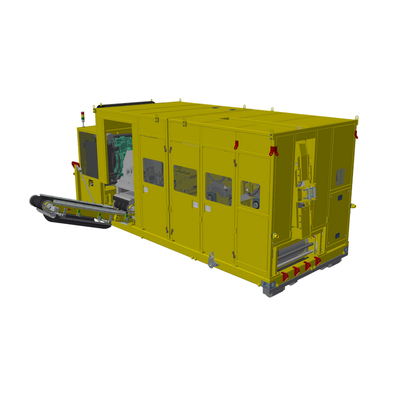

Continuous Linear Puller: 3 machines in 1. Safer, faster and cheaper.
Value Proposition
- Direct spooling winch located on the front of the machine to assist with conductor loading
- Self-adjusting pulling module with multiple pinch wheels for self-loading of the conductor and which allows joints/connectors to pass without stopping
- Cutting module to cut the old conductor in small parts, including mid-span joints and similar devices
- MAX PULL : 50 kN
- MAX SPEED : 3 km/h
- CONDUCTOR DIAMETER : 40 mm
- STANDARD FEATURES : New Tesmec Digital HMI 7`` color display, Radio Remote Control, Remote Diagnostic System with GPS, Data Recorder
