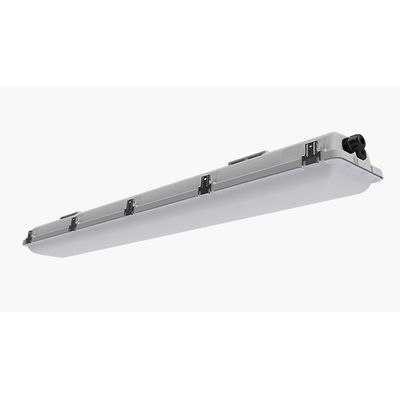

Abtech - Model ExLED Z1 - Linear Led Luminaire
The ExLED is a linear LED luminaire designed as a direct replacement for traditional linear 2 x 18W, 2 x 36W and 2 x 58W T8 fluorescent lighting. The use of LED technology as a light source provides reduced maintenance and site downtime due to longer maintenance intervals. The 100,000 hour operational life (L70 @55°C) ensures removes the need for replamping every two to three years as was the case for fluorescent lamps.
The luminaire features a GRP body, pure white LEDs (6500K) with a low glare, frosted polycarbonate diffuser and stainless steel clips. The body has 2 x M25 clearance holes at one end and 1 x M25 at the other. It is suitable for both through wiring and loop-in/loop-out connection.
The ExLED is available as a self-contained battery backup version. This features automatic battery monitoring with bi-colour LED status indication. The luminaire also carries out automatic commissioning and duration testing to ensure the emergency operation is maintained throughout its lifetime.
- Replacement for 2 x 36W and 2 x 58W linear fluorescents
- 100,000 hours operation at 55°C
- 3 hour self contained battery backup option
