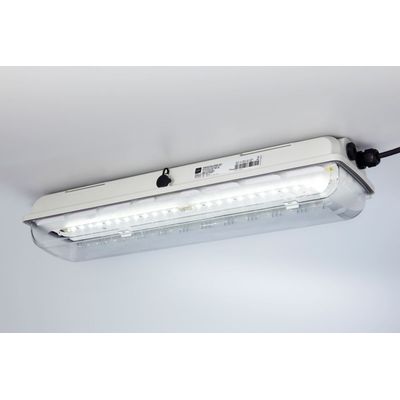

STAHL - Model Series 6002/4 - Linear Luminaire With LED Exlux
FromR. STAHL AG
The latest LED technology with a high luminous efficacy and a long service life. Extremely high luminaire efficacy. Luminous flux after 100,000 h still 90% of the starting luminous flux. Optionally with DALI for controlling and monitoring the luminaire. Optionally addressable for direct actuation of a common battery system.
Most popular related searches
Art. No.: 267067
Product Type: 6002/4128-0100-152-2220-22-8500
- Number of lamps: 1
- max. ambient temperature: +50 °C
- min. ambient temperature: -40 °C
- Frequency range: 50 - 60 Hz
- Lamp wattage: 22 W
- AC rated operational voltage: 100 - 240 V
- Zone Filter: Zone 1 | 2 G | Gb / Zone 2 | 3 G | Gc / Zone 21 | 2 D | Db / Zone 22 | 3 D | Dc
- Certificates: ATEX (IBE), IECEx (IBE), India (PESO)
- Lamp: LED
- Light colour: 5000 K – neutral white
- Degree of protection IP (IEC 60598): IP66/IP67
- Enclosure material: Polyester resin
- Diffuser: With diffuser
- Installed terminal strip: PE + N + L1 + L2 + L3
- Max. solid connection terminals: 6 mm²
- Type of connection cable: Finely stranded, solid
- Disconnection of the luminaire: No
- Through wiring: with 5 conductors 2.5 mm2
- Drilled holes: 3 x M20
- MY R. STAHL: 6002D
- Product variant: standard
- Product Type: 6002/4128-0100-152-2220-22-8500
- Highlights:
- The latest LED technology with a high luminous efficacy and a long service life
- Extremely high luminaire efficacy
- Luminous flux after 100,000 h still 90% of the starting luminous flux
- Optionally with DALI for controlling and monitoring the luminaire
- Optionally addressable for direct actuation of a common battery system
- Functional Description: The linear luminaire with Series 6002/4 LED is ideal for lighting surfaces at a mounting height of up to 10 m. It can also be used to illuminate equipment and objects, both inside and outside. The pole mounting sleeve accessory can be used to easily mount the luminaire on poles. Optionally, the luminaire can be equipped with addressable equipment. It can be used to control and monitor the luminaire for the common battery systems.
