Smart Energy Corporation

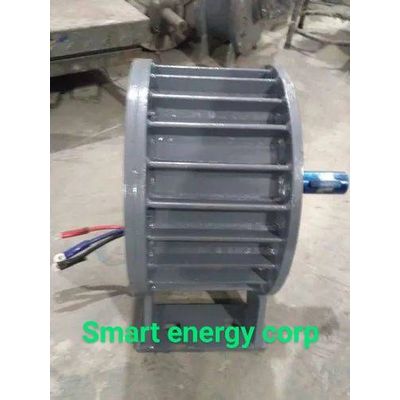

Permanent Magnet Generator - Energy - Hydro Power
Advantages: 1. Two years warranty 2. 100% magnets winding 3. life more than 50% years. Used Neodymium magnets Grade N45SH, N54SH 5. Efficiency more than 90% 6. Brand: SMART ENERGY( Made in India) 7. 24/7 hours working 8. High speed 9. Heavy loadMost popular related searches
Technical Specification for 10KW, 300RPM, 230VAC,
Three Phase Permanent Magnet Alternator.
Sl.
No.
Description Parameter
01. Rated Power 10Kw
02. RPM 300
03. Number of Pole 20
04. Rated Voltage 230Volts (Three-Phase)
05. Power Factor 0.9
06. Rated Amp 27.8amp
07. Frequency 50Hz
08. Insulation Class H Class
09. Working Temperature -30⁰ C to 80⁰ C
10. Starting Torque 4.5NM
11. Rated Torque 304.9NM
12. Magnet Type Neodymium (NdFeB)
13. Warranty 24 Months
14. Type Radial Flux
15. Generator shell material Cast Iron
16. Winding material 100% Copper
17. Shaft material EN8
18. Bearing Brand SKF
19. Efficiency More than 90
