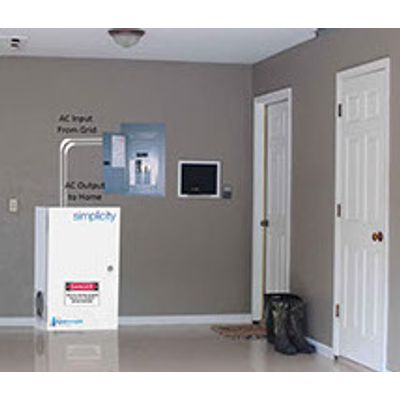

This preliminary design lor The Digital Microgrid Initiative is tor use in energy arbitrage, back-up power, line quality mitigation or peak shaving. The AC power is received from the grid when prices are lowest and is converted to 380Vdc which is stored in the batteries. When power is needed trom the batteries it is converted back to AC with the inverter. Additional power from solar, wind or generators can be blended in as desired.
