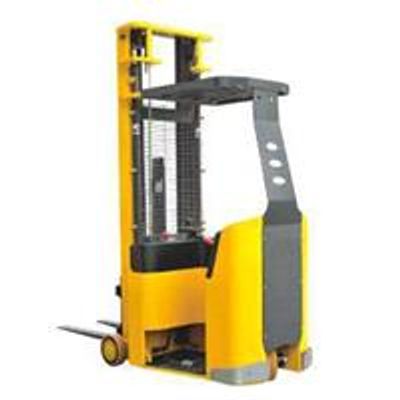

3-Way Electric Pallet Stacker

We are professional 3-Way pallet stacker supplier and factory in China. We can produce the product according to your requirements.

3-Way Electric Pallet Stacker Description

TC Series 3-Way pallet stacker, with 180º rotating fork;

Rated load capacity: 1000kg, lift height:7500mm;

The min. width of aisle is 1510mm;

Colored monitor for triplex mast;

Soft backrest;

Driving position display;

More Product Storage - Up to 60% increase;

More efficient use of available space;

Reduced handling costs.

A narrow classis design, small battery compartment and tiller arm steering with 180º range give this compact stacker excellet manoeuvrability, even in limited space.

3-Way Electric Pallet Stacker Parameters

Min Ground Clearance--mm
40
Max. Gradeability ---%
10
Wheel Type
Polyurethane Solid Tyre
Driving Wheel (MM)
Φ343×108
Balance Wheel (MM)
Φ180×76
Front Wheel (MM)
Φ140×100
Battery V/AH- Domestic BRAND
48V /300 AH
Service Brake
Mech.
Parking Brake
Mech.
Charger-Intelligent
48V /50 A
Driving Motor (KW)
5.5 (AC)
Lifting Motor (KW)
7.5
