LV & MV Aerial Bundle Cable (ABC) Overhead Distribution Lines

Application

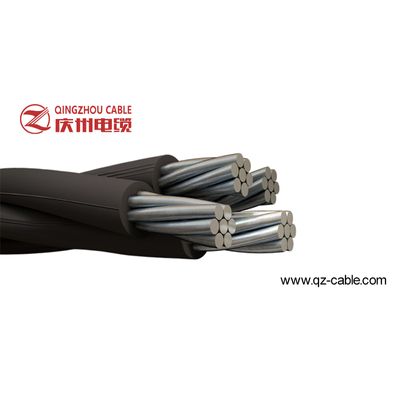

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.

It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

LV ABC Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.

This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140. It is not flame retardant. But this could be if requested change to a flame retardant cable.

Standard

International Electrotechnical Commission International Standards- TNB Specification(IEC 60502)

Australia New Zealand Standard-AS/NZS 3560-1 standards

French Standard-NFC 33-209

HD 626 S1

British Standard-BS 7870

MV ABC (3.8/6.6kV-19/33kV)LV & MV Aerial Bundle Cable (ABC) Overhead Distribution Lines

Application

Aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises.

Standard

International Electrotechnical Commission International Standards-IEC 60502

Australia New Zealand Standard-AS/NZS 3599-1 standards
