Isolated Turbine at the Cártama Townhall - Case Study

SHARE
Mar. 2, 2026
Courtesy ofTecnoturbines S.L

The municipality of Cártama (Málaga) has a deposit located at an elevated level from which drinking water is distributed by gravity. In one of the sectors of the network there is a reducing valve that reduces the pressure downstream by 20 meters.

Most popular related searches
lighting system
battery bank
electric power
electrical power
inverter power
power turbine
inverter
power generation
power inverter
  • CÁRTAMA (SPAIN)
  • PRESSURE DROP: 20 METRES
  • FLOW RATE: 13.5 LITRES / SECOND
  • GENERATED POWER: 1400W
  • ISOLATED ELECTRIC POWER SUPPLY
  • HE TURBINE

THE SOLUTION

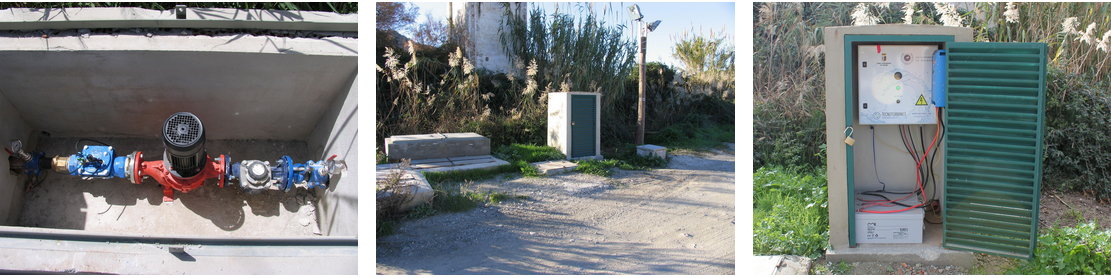

Tecnoturbines installs a HE turbine in parallel to the reducing valve to obtain energy for public lighting. The system has a battery bank of 24V and 240Ah capacity equipped with a 230V inverter to power the lighting system.
