Low ESR Winding type series
Low ESR Winding type series include:low esr supercapacitor, esr supercapacitor, low esr capacitor, low esr cap, cap esr, 1000uf low esr capacitor, low esr aluminum electrolytic capacitors, etc.
Technical data
LR Series
Performance characteristics: Low internal resistance series. The product uses a new internal design and advanced materials to ensure low ESR.
Typical application:RAM, Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Series specification sheet:
Series name
LR Series
Type name
LR-2R7
Rated voltage
V R
2.7V
Surge voltage
2.85V
Capacity range
1F~100F
Operating temperature range
-40 ~ +70°C
Product life
Normal temperature cycle life:25℃,1 million cycles between VR and 1/2VR , Capacity attenuation≤30% ,ESR change≤4 times.
High temperature endurance life:70℃, maintain VR ,1500 hours.Capacity attenuation≤30% ,ESR change≤4 times.
Product performance list :
LR 2.7V Series products
Model
Capacity
F
ESR mΩ

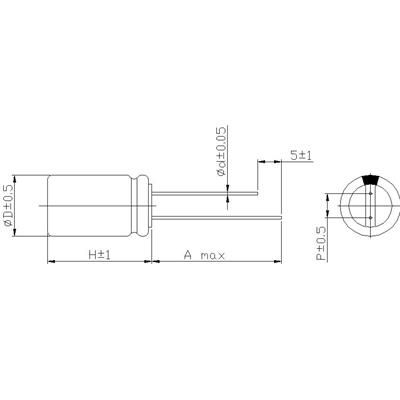

Product size(mm)
DC
AC
1kHz
Diameter
Height
Pin distance
LR-2R7-J254UYJ03
0.25
300
150
5
12
2
LR-2R7-J105VYJ06
1
170
85
8
13
3.5
LR-2R7-J205VYJ07
2
105
70
8
20
3.5
LR-2R7-J205VYJ08
2
105
70
8
16
3.5
LR-2R7-J205VYJ66
2
105
70
10
13
5
LR-2R7-J205VYJ13
2
105
70
10
20
5
LR-2R7-J335VYJ07
3.3
85
60
8
20
3.5
LR-2R7-J505UYJ04
5
60
40
8
twenty four
3.5
LR-2R7-J505VYJ13
5
85
55
10
20
5
LR-2R7-J705UYJ13
7
85
55
10
20
5
LR-2R7-J705VYJ11
7
46.5
30
10
25
5
LR 2R7-805VYJ11
8
53
35
10
25
5
LR-2R7-J106VYJ12
10
55
25
10
30
5
LR-2R7-J106VYJ09
10
55
25
12.5
twenty one
5
LR-2R7-J256UYJ21
25
25
17
16
26
8
LR-2R7-J107UYJ28
100
10
5.0
twenty two
46
10
LR-2R7-J107UYJ29
100
10
5.0
25.4
40
10
LR-2R7-J127VYJ30
127
9.6
4.8
25.4
54
10
LR-2R7-J157VYJ30
157
9.2
4.6
25.4
54
10
LR-2R7-J227VYJ31
227
8.0
4.0
30
50
10
LR-2R7-J307VYJ32
300
7.0
3.5
35
54
10
LR-2R7-J367UYJ32
360
6.0
3.0
35
54
10
LR-2R7-J367VYJ32
367
6.0
3.0
35
61
10
LR-2R7-J407UYJ33
400
5.6
2.8
35
61
10
LR-2R7-J477VYJ33
470
6.0
3.0
35
61
10
LR-2R7-J507VYJ33
500
6.0
3.0
35
61
10
LR-2R7-J557VYJ75
550
5.6
2.8
35
70
10
LR-2R7-J607VYJ75
600
5.6
2.8
35
70
10
Typical Application
Series
Application range
Instance
SP, LR, HP, HT
Backup power
RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SE, HP, HE
Energy storage
Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment
SE Coin type, HE
Energy storage
Flashlights, water meters, gas meters, taillights, small appliances, etc.
HP、LR
High power support
Wind power, locomotive start, ignition, electric vehicles, etc.
MK
Backup power
High current operation
Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system
Jinzhou Kaimei Power Co., Ltd. is one of the leading low esr capacitor manufacturers in China.
As one of the most professional super capacitor manufacturers of supercapacitor ultracapacitor, we have been devoting ourselves in providing high quality super super capacitor with competitive price. If you want to buy super capacitor, don’t hesitate to contact.
