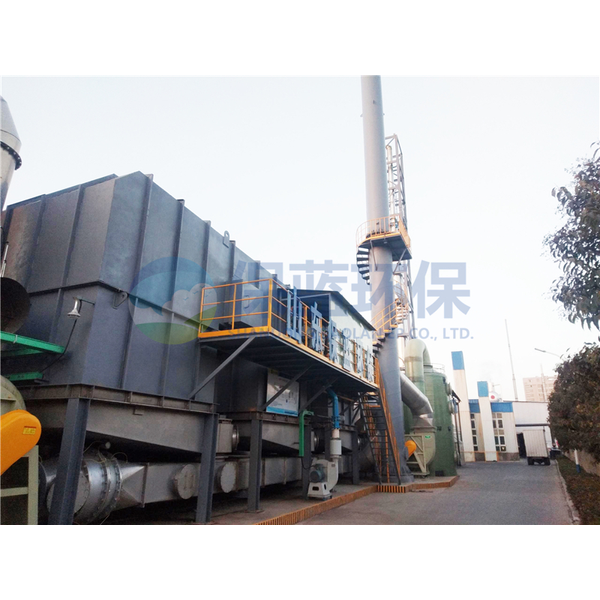

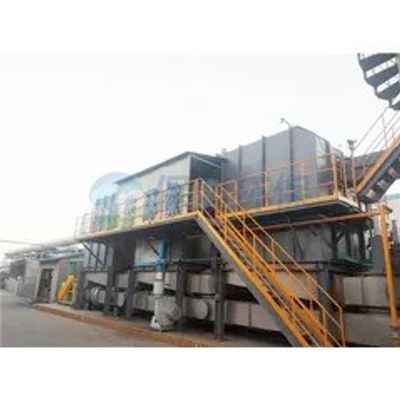

RTO Regenerative Incinerator - Case Study

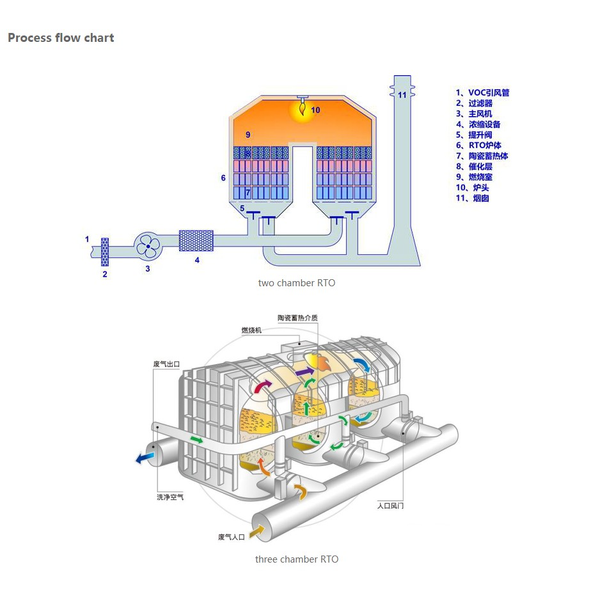

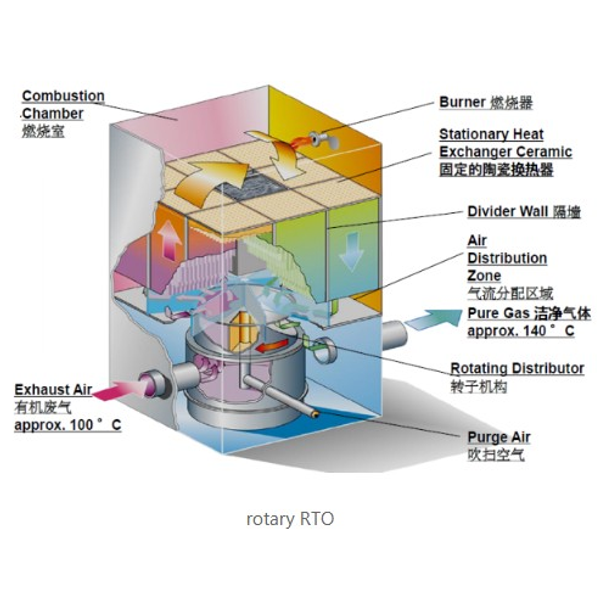

Regenerative Thermal Oxidizer (RTO) uses the ceramic regenerators to store the heat generated by the decomposition of VOCs, and uses the thermal energy stored in the ceramic regenerator to pre-heat and decompose the untreated VOCs, thereby achieving high thermal efficiency. The oxidation temperature is generally between 800 ° C and 850 ° C, up to 1100 ° C. Regenerative Thermal Oxidizer is mainly used in applications where the VOCs is in low concentration and large amount of exhaust flue gas. It is also very appropaite when the VOCs contains corrosive substances which are toxic to the catalyst and which require high temperature to oxidize some odor.
