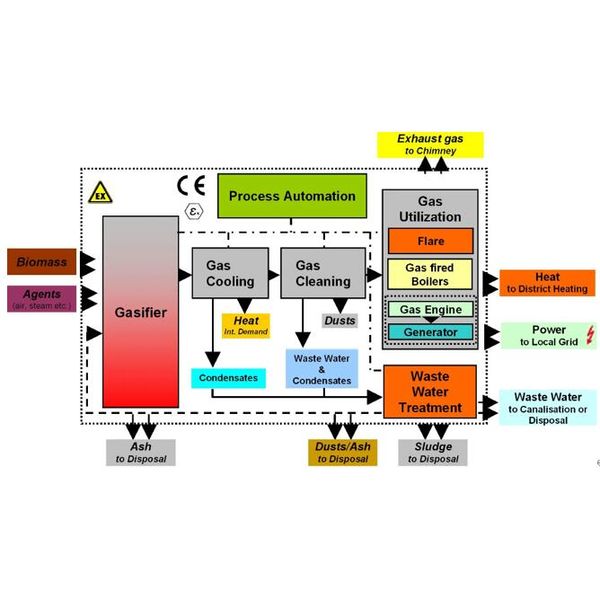

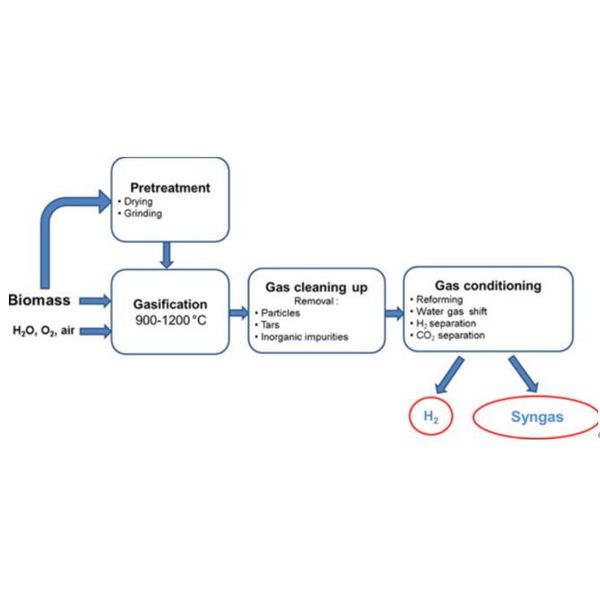

Process of Biomass Gasification

Biomass feedstock starts as plant matter. It’s chopped, ground, and sorted. The aim is to make the feedstock uniform.

Feedstock undergoes drying. Under 105-110 degrees Celsius, moisture evaporates. Optimum moisture content is below 20%.

At 200-300 degrees Celsius, biomass starts decomposing. Volatile substances get released. What remains is char, a form of carbon.

Char and volatile substances do burn in controlled oxygen. The result is heat, along with carbon dioxide and water vapor.

With limited oxygen, carbon dioxide and water vapor turn into carbon monoxide and hydrogen. These are part of the final product, syngas.

Impurities like tar and ash particles get removed from syngas. Purification ensures the gas is suitable for energy conversion.

Hot syngas undergoes cooling. Drop in temperature condenses the water vapor, which gets separated from the gas.

Conditioning entails altering the syngas composition. Adjustments ensure the gas meets required specifications for further applications.

Carbon monoxide and hydrogen form the bulk of syngas. Other constituents include methane, nitrogen, and trace amounts of impurities.

Syngas carries high energy content. It’s converted into electricity or biofuel in power generation units.

The ash byproduct from gasification gets managed. It can be used in construction materials or safely landfilled.

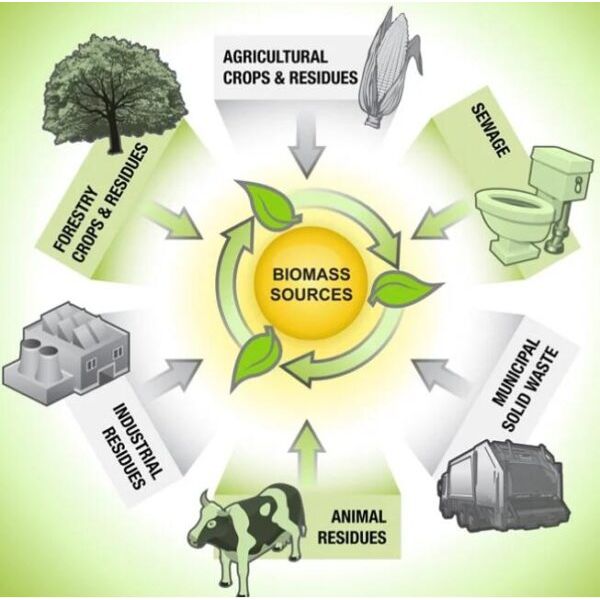

Different Types of Biomass Used

Leftovers from timber mills make excellent biomass. Sawdust gasification creates clean, energy-rich syngas.

Straw, husks, and stalks from farming get used. The residues, otherwise waste, contribute to renewable energy.

Post-consumer food waste also gets gasified. Rotting fruits and vegetables transform into valuable syngas.

Livestock waste is another valuable biomass source. It produces biogas rich in methane.

Grass species such as switchgrass serve as efficient biomass feedstock. They’re converted into syngas in gasifiers.

Hard shells of nuts like almonds and coconuts can be gasified. The dense shells generate high-quality syngas.

Bark from forestry activities makes a great biomass source. Gasification of bark produces energy-rich syngas.

Used paper products also serve as biomass. Recycling them into syngas reduces landfill waste.

Household garbage contains valuable biomass. Gasification converts the waste into clean, renewable energy.
