3T & Associates, Inc products

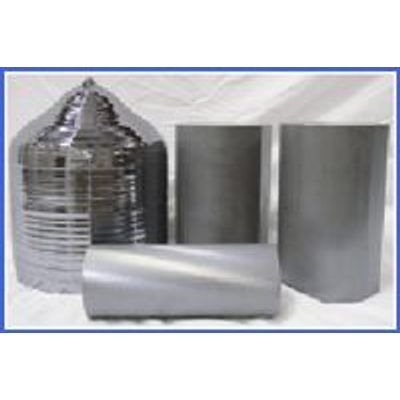

<1-0-0> & <1-1-1>, 50mm to 300mm, As Grown, OD Ground, Flatted

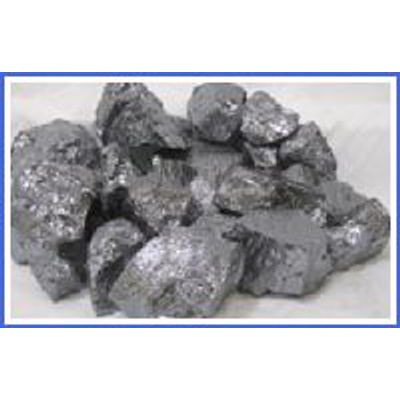

Semiconductor & Solar Grade: Rods, Chunks, Chips & Fines. Poly Silicon is non-doped for use in growing CZ crystals and casting multi-crystal ingots. This material comes in various shapes and sizes (contact 3T for additional information).

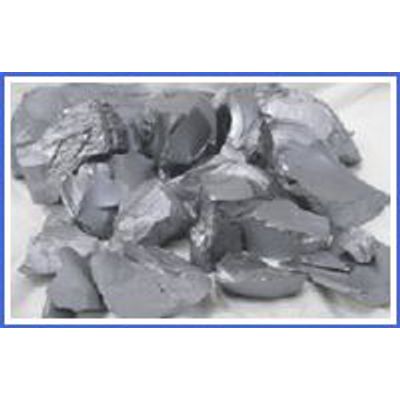

High & Low Resistivity. Includes: Tops, Tails, Ingot Sections and Chunks. Material is Tested, Cleaned and Sorted to your specifications.

High & Low Resistivity. Material are Tested, Cleaned and Sorted to your specifications.

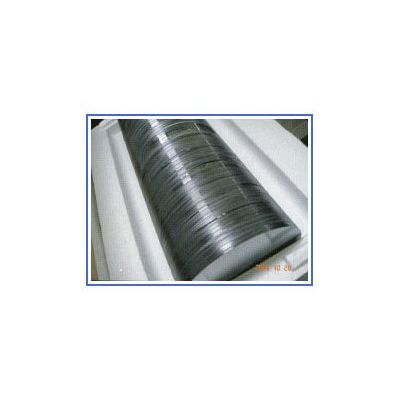

Diameters: 25mm - 300mm. Types: N (Arsenic, Antimony, Phosphorus) P (Boron). Orientation:or(for specific requirements, contact 3T). Resistivity: High (>1ohm - cm) and Low Resistivity (0.001 to 0.9 ohm-cm). Thickness: SEMI-standard for all diameters (for specific requirements, contact 3T). Grade: Prime, Test, Reclaim, Coinroll and Solar. Finish: As-cut, Lapped, Etched, Single Side Polished, Double Side Polished, Ultra Thin, Thin Films, Back Grinding, Epitaxial, MEMS Application.

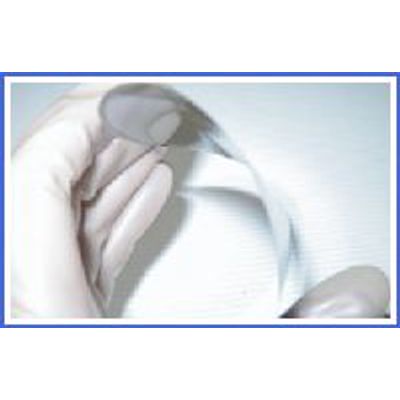

Diameters: 100mm to 200mm, Thickness as low as 60um, Application: Gyro-sensors, MEMS, etc.

3T has a variety of solar grade ingots. Please let us know the Diameter, Type, Orientation, Resistivity, and Surface you require.

Coinroll wafers: Our Solar Grade Coinroll Wafers are purchased directly from major Silicon Manufactures; such as SEH, Komatsu, Sumco, MEMC, Wacker, Taisil, Tocera and LG.

Purfied poly crystalline silicon is melted and grown into round crystalline ingots. The round ingots are shaped to produce square ingots for slicing. Our Single Crystalline Wafers also come from the most reputable Solar and Semiconductor Manufactures Worldwide.

Our Multi-Crystal wafers come from the most reputable Solar Ingot Manufactures Worldwide. We have both P and N type wafers available.
