AB Micatrone products

Mounting bracket for carrying rail 35/7,5. Place the mounting plate on the backside of the enclosure with the springloaded clamp facing downwards. Fasten the mounting plate using the four attached screws ø4.8x13, see figure 1 location “A”.

The MS-35M actuator is intended for controlling dampers, guide rails, etc. in control and control systems. Connection can be made to control systems, two-position controllers, 3-point controllers and together with servo regulator also to continuous regulators.

Oil quantity meter type MQG-80E/MQG-200E with electronic impulse sensor for remote recording or MQ-80/MQ-200 with mechanical counter only.

The MVP-300 is a digital power selector for up to 3 boilers. Boiler A can be selected to be connected in series (e.g. electric boiler) or in parallel (e.g. oil boiler). The minimum pre-conduction temperature can be shifted with the outside temperature. Output for data communication is available as an accessory.

The MEL-1000 is a control and control centre for electric boilers. Mel-1000 comes with test report from quality control.

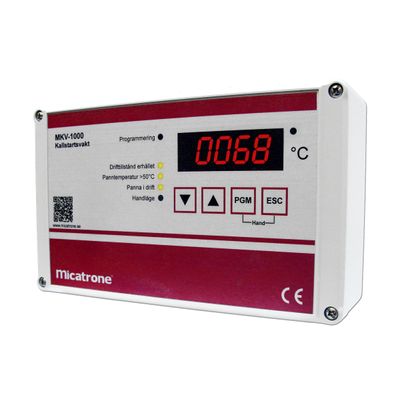

MKV-1000 is a cold start monitor that prevents the start of a boiler if the temperature in the supply line from the boiler falls below 50 °C. This ensures compliance with the regulations in the Swedish Work Environment Authority`s AFS 2017:3 "Use and control of pressurized devices", Chapter 6.
