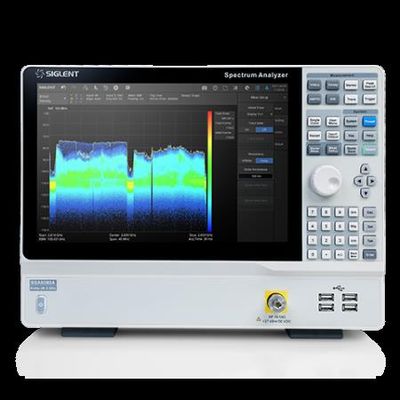

Key Attributes: Frequency Range from 9 kHz up to 13.6 /26.5 GHz, -165 dBm/Hz Displayed Average Noise Level (Typ.), -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.), 25 MHz/40 MHz Realtime Spectrum Analysis Bandwidth, Analog Modulation Analysis and Vector Digital Modulation Analysis, Channel power, ACPR, OBW, Harmonics, and TOI measurement option, Web Browser for easy Remote Control over LAN

10MHz to 3600MHz or 6000MHz frequency range, Resolution bandwidths from 300Hz to 10MHz (1:3:10), -120dBm typical noise floor at -40dBm ref. level/10kHz RBW, Measurement in dBm or dBuV, mV or uW, Zero span mode with AM and FM audio demodulation, Trace modes of normal, peak hold and trace average, Live, View and Reference traces in contrasting colors, Twin markers with readout of absolute & difference values, Smart marker movement with selectable peak tracking, Frequency counter with down to 10Hz resolution, Frequency presets and independent state storage, Auto-find automatically sets sweep parameters for the highest signal found, Unlimited storage for waveforms, set-ups and screens, User assignable file names, file stamping from real-time clock, USB interfaces for Flash drives and PC connection, Comprehensive status and context sensitive help screens, More than 3 hours continuous operation from a charge, Smaller and lighter than other spectrum analyzers (weight only 0.56 kg).

The  Hybrid Power Modules 50HM1G6AB-47 is a compact, wide-band, hybrid power amplifier module that covers 1-6GHz. When used with a sweep generator, the Model 50HM1G6AB-47 provides a minimum of 40W of RF power instantaneously from 1-6 GHz with RFIN = 0dBm. Max RF input is +13 dBm.. The Model 50HM1G6AB-47 operates from a single DC voltage (22V to 28V) and shuts off if the voltage exceeds 29V. It provides 48dB of typical gain with excellent gain flatness, noise figure and low intermodulation distortion. It is designed to have low spurious signals, linearity and is extremely load tolerant which enables it to be used in many RF applications that require linearity, power and wide bandwidth. The circuitry consists of balanced topology which provides good input and output return loss and stability. It is a 50 ohm, cascadable building block and can be used as a microwave power amplifier for both the military and commercial industries.
