Advanced Power Conversion Solutions Inc. products

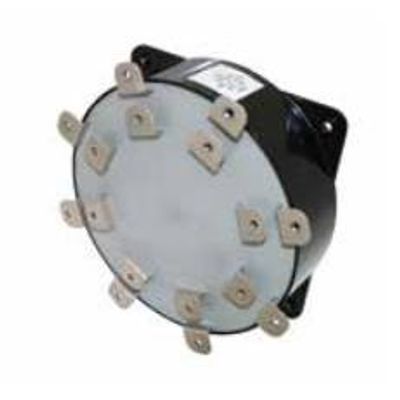

The 700D50794-529 Power Ring is a 450 Vdc, 500 fjF DC Link Capacitor with an ESR of 320 micro-Ohms at 20 kHz and an ESL of less than 5 nH.

The 700D80794-600 Power Ring is a 450 Vdc, 800 fjF DC Link Capacitor with an ESR of 188 micro-Ohms at 20 kHz and an ESL of less than 5 nH.

The 700D16894-601 Power Ring is a 450 Vdc, 1600 fjF DC Link Capacitor with an ESR of 98 micro-Ohms at 20 kHz and an ESL of less than 5 nH.

This part series features a single metalized polypropylene winding (single section) that is encapsulated in a case. This part series has terminal feet that face inward for a reduced footprint.

SBE’s Bank Hardener, offers a smaller, less expensive, more powerful and more reliable method of meeting your inverter or power conversion DC-link requirements. Enabled by the annular form factor Power Ring Film Capacitor, the Bank Hardener allows you to: Reduce up-front costs by using fewer capacitors and smaller bus structures, Reduce maintenance costs by extending the life of your capacitor bank and reducing failure points, Extend the life of the bank by two to three times, Increase system efficiency by lowering capacitor losses, Get more power out of your existing capacitors.

The 700D10896-348 Power Ring is a 600Vdc, 1000 jjF DC Link Capacitor with an ESR of 125 micro-Ohms at 20kHz and an ESL of less than 5nH.

The 700D15896-523 Power Ring is a 600Vdc, 1500 (jF DC Link Capacitor with an ESR of 100 micro-Ohms at 20kHz and an ESL of less than 12nH.

The 700D50797-599 Power Ring is a 700 Vdc, 500 (jF DC Link Capacitor with an ESR of 390 micro-Ohms at 20 kHz and an ESL of less than 5 nH.

The 700D10897-547 Power Ring is a 450Vdc, 1000 fjF DC Link Capacitor with an ESR of less than 250 micro-Ohms at 20kHz and an ESL of less than 5nH.

The 700D21799-406 Power Ring is a 900 Vdc, 215 μF DC Link Capacitor with an ESR of 350 micro-Ohms at 20 kHz and an ESL of less than 5 nH.
