Principle of the enclosed tube bundle: Shell and tube heat exchanger consist of a hollow cylinder (shell) with inserted bundle of a large number of tubes. A medium flows through each of them. The tube bundles can be designed as straight- or U-tube and can be connected to the shell tightly or drawable.

Double tube instead of shell: Double tube heat exchanger do not consist of tube bundle and shell, but only of a tube bundle – with outer and inner tube. In this way, it is possible to create pure counter current, which provides a particularly intensive heat transfer. Therefore, double tube heat exchanger are particularly used for smaller throughput quantities and lower temperature differences. Generally, they need a lot of room because several double tube segments are compiled in a register.

Shell and tube heat exchanger with U-tube bundle the legs of which are all sheathed: The shell tube system as a whole is bend back by 180° in case of this type, which shapes the heat exchanger as a hairpin. Such solutions are space-saving and are also suitable for media with large temperature differences due to their low thermal expansion. Hairpin heat exchanger are used, for example, for waste heat utilisation, exhaust gas treatment, evaporation and condensation.

With safety double tube: SiRo heat exchanger are a special design of shell and tube heat exchanger for the handling of hazardous media. The double tube wall prevents the contact with media even in case of leakages. Additionally, designs with double bottoms are available. SiRo designs are used, for example, in the chemical, pharmaceutical and food industry. They are also often requested for oil cooling systems in mechanical and plant engineering for environmental reasons.

AEL is considered a specialist for the engineering and construction of oil supply systems. They are used for lubricating, control and jacking oil supply of turbines and compressors for different areas of application.

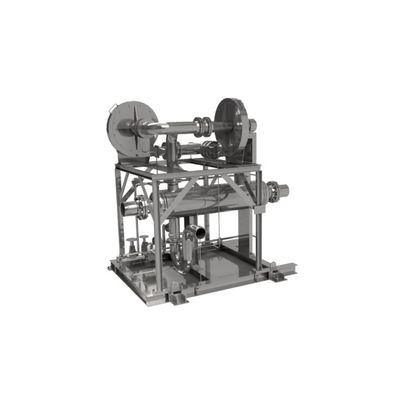

AEL designs and builds skids for the evacuation, discharge and conveying of the condensate in surface condensers, mounted as complete unit.

AEL designs and builds skids for the evacuation, discharge and conveying of the leaking steam in steam turbines, mounted as complete unit.
