Agastya Invention Pvt Ltd products

As the name suggests, Double Membrane Digestor Mounted Balloons or these Biogas Holders are installed on top of permanent structures- steel or concrete tanks, at Biogas Plants. Tank-mounted gas holders consist of two membranes- the outer membrane helps to maintain the shape of the gas holder while the inner membrane keeps the fermentation chamber tightly sealed to prevent any gas leak. Both membranes are anchored to the outer wall along the brim of the steel or concrete tanks. The air blower installed in the gap between the two membranes generates a continuous pressure on both membranes. This air pressure helps to hold the shape of the outer membrane and the pressure on the inner membrane facilitates the easy flow of air from the fermentation chamber into the processing system.

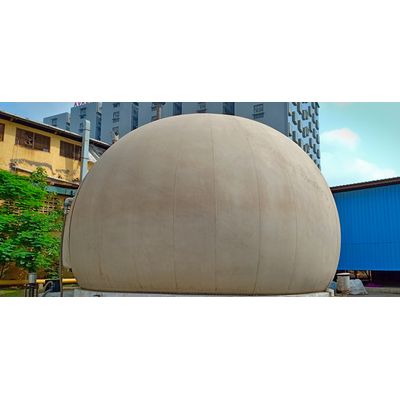

The 3/4th hemispheric design is the most common and traditionally used storage solution for high-pressure gas storage. It has a double membrane design – the outer membrane gives shape to the gasholder while the inner and floor membrane forms the actual storage space for biogas. A continuous flow of slightly over-pressured air is supplied to the space between the inner and outer membranes - via an air blower. This air helps to maintain the shape of the gas holder as well as to withstand the pressure of external weather agents like wind, rain, etc. Agastya Invention’s Free Standing Double Membrane Gas Holder manufactured using top-quality technical fabric provides an efficient biogas storage solution.

As the name suggests, these biogas holders are installed on top of permanent structures- steel or concrete tanks, at biogas plants. Tank-mounted gas holders consist of two membranes- the outer membrane helps to maintain the shape of the gas holder while the inner membrane keeps the fermentation chamber tightly sealed to prevent any gas leak. Both the membranes are anchored to the outer wall along the brim of the steel or concrete tanks. The air blower installed in the gap between the two membranes generates a continuous pressure on both the membranes.

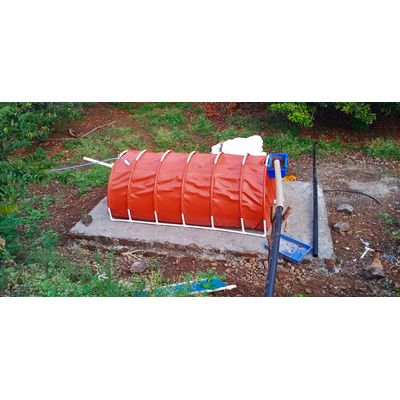

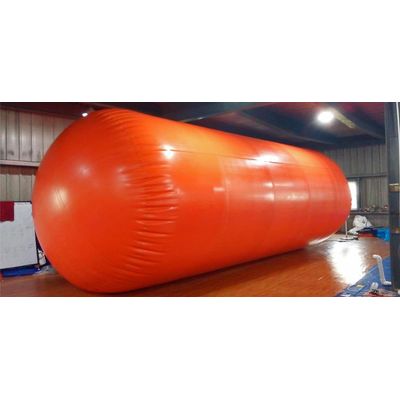

We manufacture and supply customisable single membrane gas holder balloon. It is an inflatable balloon used as an interim storage tank before the gas is used in any application. We use high strength PU/PVC coated polyester fabric to make these balloons which provide UV resistance and all weather protection to the balloon. Without the usage of any tools, the biogas balloon can directly be connected to the biogas plant. We manufacture these balloons in easily customisable shapes and sizes.

Agastya Invention uses the best-in-class premium fabric to manufacture high-end flexible and portable Biogas Storage solutions. These storage balloons are sturdy, durable and can be customized as per actual requirements. These gas holders can easily be hung from the ceiling and can also be worn like a backpack on the shoulders for transportation.
