AIC Inc. products

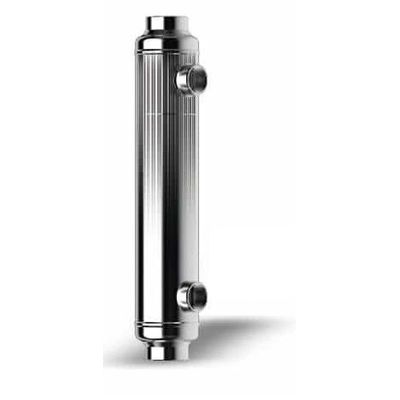

B6-Series heat exchangers are fabricated with the distinctive AIC thin-tube, high-density design. Intended for use with high fluid flows and close approach temperatures, these robust, compact units are ideal for many residential and industrial applications. B6 heat exchangers have a performance closer to their compact brazed plate type counterparts owing to the unique thin-tube design tailored for flows in pool applications. Their complete stainless steel welded structure ensures product strength and high quality performance.

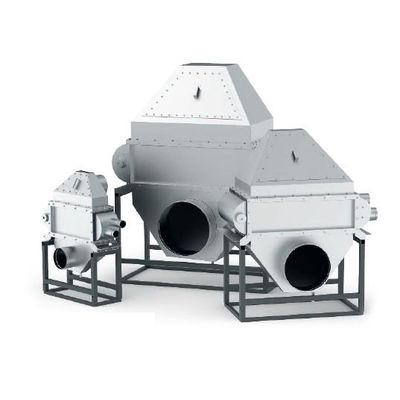

AICs standard line of E-Line economizers is the optimal solution for boiler flue gas heat recovery. Covering a wide range of boiler sizes, the E-Line delivers real energy and cost savings for commercial and industrial installations. In principle the E-Line economizers act as air to water heat exchangers. Flue gas, typically considered wasted heat, can be effectively cooled down and condensed through the AIC system. This cooling and condensing process releases and transfers excess energy from the flue gas to process fluids flowing through the tubes.

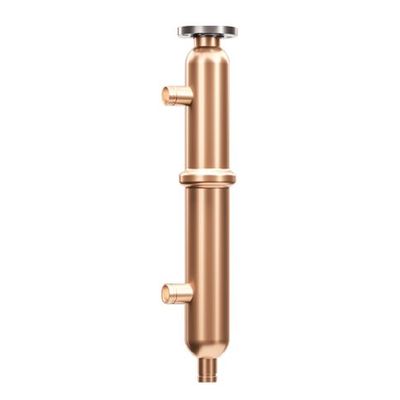

Cobrex is a straight, shell and double wall tube, heat exchanger with visual leak detection. A one-pass vertical design, it is constructed entirely of pure copper with internally corrugated tubes, and closely spaced directional baffles, for maximum heat transfer. Cobrex is an ideal solution for tankless instantaneous, and semi-instantaneous, hot water generation.

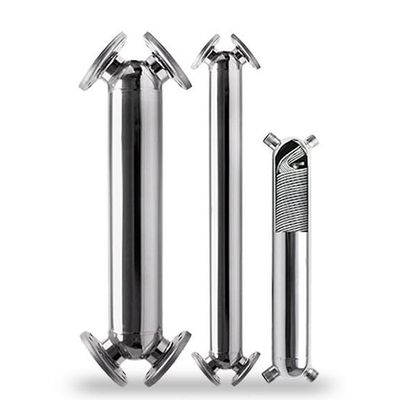

JAD shell & coil heat exchangers are distinctly characterized by their angular connections, and by the concentric layers of helically corrugated tubes within the shell. This unique design optimizes the performance and heat transfer efficiency of the units. This line of heat exchangers is primarily designed for vertical installations and combined with their compact size, the JAD heat exchangers can be installed in virtually any application where space is a constraint.

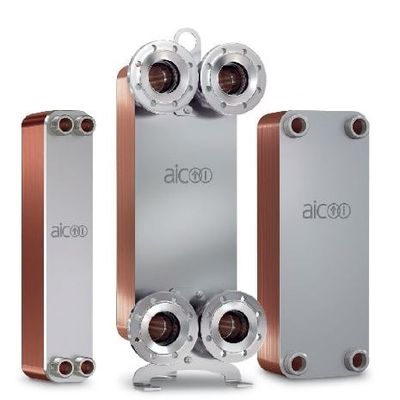

Brazed plate heat exchangers consist of stainless steel plate plates, which have embossed chevron patterns. The plates are turned 180° to each other, causing the plate ridges to intersect, and creating a lattice of intersecting channels. The fluids can flow in counter-current or co-current way. Special corrugation patterns promote high turbulence flow. Turbulence dramatically improves heat transfer rates and reduces the amount of deposits inside the unit.

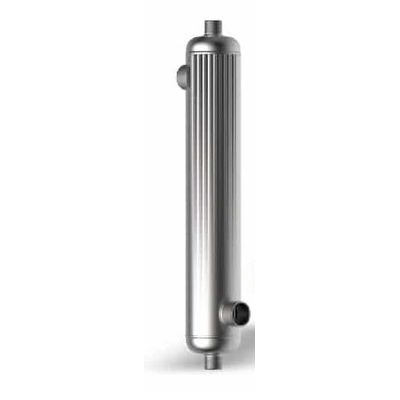

A collaboration of practicality, versatility, durability, and a dash of novelty, the LENS heat exchangers break the mold with a new multi-functional, multi-dimensional, transformative ingenuity opening doors to unprecedented possibilities in fluid dynamics and process control. The strength of the LENS series lies in its adaptive nature, allowing customization of standard products to optimize its effectiveness in varying applications. From hydronic heating to steam condensers, and all processes in between, the LENS offers clients unrivaled quality with the highest degree of flexibility.

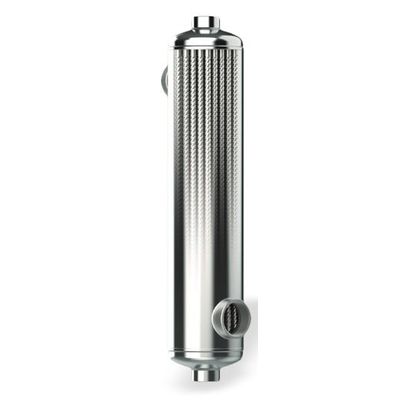

M-Line heat exchangers are a line of completely welded heat exchangers made entirely of a super austenitic marine alloy. Its compact structure is an integration of innovative material with detailed engineering for effective use with high fluid velocities and low pressure drops, designed specifically for salt water pool applications. The versatility of this robust straight tube design covers a comprehensive range of capacities, suitable for all residential and commercial pool applications.
