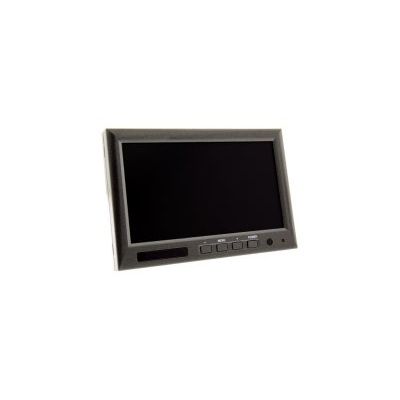

The 7-inch LCD monitor mounts inside the Heavy-Duty system toolbox and on the Deluxe and Light-Duty winch handles. The 7-inch monitor provides a convenient way for the system operator to view the image from the camera. The monitor plugs directly into the control panel of the Deluxe and Heavy-Duty winches. On the Light-Duty system an adaptor cable connects the monitor to the control panel.

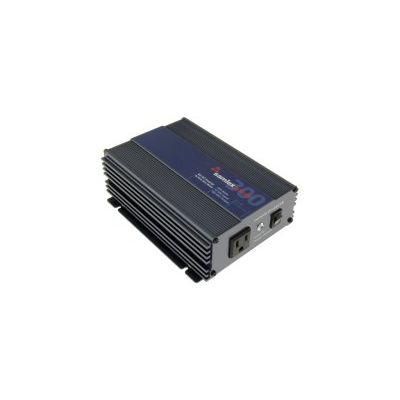

Our Samlex Pure Sine Wave Inverter converts 12 volts from batteries into stable, clean 120 VAC voltage almost identical to the power supplied through your household electrical outlets.

The GeoVISION Nano Rotating Mirror gives the Nano camera the ability to scan the bore wall. Its extremely small size allows it to work in bores as small as one inch in diameter. The mirror is motor driven and rotates automatically. It can be set to rotate continuously or to rotate 20º, pause for about a second and then rotate again. The pause allows for the best possible video and allows for high quality still images to be taken from the video. The Nano Rotating Mirror runs on two CR2 lithium batteries and is rated for use to depths up to 2,000 feet (600 meters) underwater.

The GeoVISION Field Repair Kit contains replacement parts and instructions to contend with the most common field problems. The kit contains a Cable-End Replacement Kit, a Voltage Setting Kit and a replacement gray 15 Foot Modular Cable. The Cable-End Replacement Kit contains everything necessary to replace the connector on the end of a GeoVISION winch cable. This kit can be used in the field in the event of an emergency; however, permanent replacement requires a soldering iron or gun as well as 24 hours for the epoxy to dry.
