6 products found

Alu Solarframe Tech(Jiangsu)Co.,Ltd products

ASF - Aluminum Solar Panel Frame for Double Glass Solar Panel

Double glass solar panel also called Bifacial solar panels to produce solar power from both sides of the panel. Whereas traditional opaque-backsheeted panels are mono facial, bifacial modules expose both the front and backside of the solar cells. When bifacial modules are installed on a highly reflective surface (like a white TPO roof or on the ground with light-colored stones), some bifacial module manufacturers claim up to a 30% increase in production just from the extra power generated from the rear.

ASF - Solar Panel Frames

Item: solar panel frames for sale. Solar frame model: ASF-8511. Thickness: 40mm height. Type: silicon frame installed. Raw material: 6063/6005 aluminum alloy. Frame Section Size: 40*35mm. Slot size: 5.0mm. Suitable glass: 3.2mm thickness. MOQ: 1500sets. Color: black/silver/custom. Payment terms: TT or L/C. FOB price: Negotiable. Common Specifications:1640*992mm/1956*992mm.

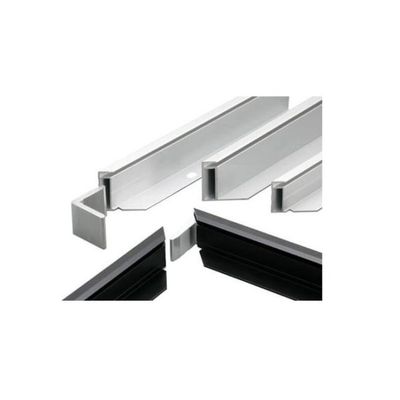

ASF - Aluminum Solar Panel Frame

Solar panel frame is also called solar panel aluminum frame, It is the most important part in assembling for Solar Panel. Aluminum profile for solar panel review is an extruded aluminum frame which used to seal and fix solar module components. It can protect the solar cell and glass out of damage and break.Besides framed PV panels are better protected during transport than frameless solar panels. So more and more thin film solar companies would love to use the frame on their new solar panel design.

ASF - Free Solar Panel Frame Design

Solar panel frame design is also called solar panel frames design or pv solar panel frame design. It is our custom aluminum solar frame service for our current solar module partners and potential solar panel clients. The service is free from our expert team. The detailed solar panel frames design service as follows.

ASF - Cheap Solar Panel Frame Thickness 40mm (New design)

Item: Cheap solar panel frame thickness 40mm. Solar frame model: ASF-8508. Thickness: 40mm height. Type: silicon frame installed. Raw material: 6063/6005 aluminum alloy. Frame Section Size: 40*35mm. Slot size: 4.6mm. Suitable glass: 3.2mm thickness. MOQ: 1500sets. Color: black/silver/custom. Payment terms: TT or L/C. FOB price: Negotiable. Common Specifications:1640*992mm/1956*992mm.

ASF - Cheap Solar Panel Frame Thickness 35mm (New design)

Item: cheap solar panel frame thickness 35mm. Solar frame model: ASF-8509. Thickness: 35mm height. Type: silicon frame installed. Raw material: 6063/6005 aluminum alloy. Frame Section Size: 35*35mm. Slot size: 5.0mm. Suitable glass: 3.2mm thickness. MOQ: 1500sets. Color: black/silver/custom. Payment terms: TT or L/C. FOB price: Negotiable. Common Specifications:1640*992mm/1956*992mm.
