AMWEI Thermistor Sensor products

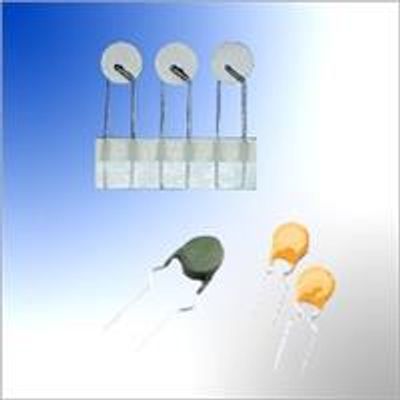

AMWEI - PTC Thermistor for Circuit Overload Over-current Protection
PTCthermistorsCircuit Protector, also calledPTCthermistorResettable fuse, are used instead of conventional fuses to protect load, such as motors, transformers, or electronic circuit, against overcurrent for circuit protection.PTCthermistorsprotector not only respond to inadmissibly high currents but also if a preset temperature limit is exceeded.PTCthermistorover-current protector limits the power dissipation of the whole circuit by increasing their resistance and thus reducing the current to a harmless residual value. In contrast to conventional fuses,PTCthermistorresettable fuses do not have to be replaced after elimination of the fault but resume their protective function immediately after a short cooling-down time.

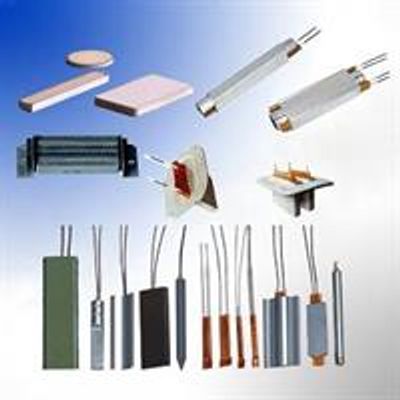

AMWEI - PTC Thermistors Heater
PTC Thermistors (thermal resistor), also called PTC stone, are ideal heating elements. Thanks to self-regulation properties, heating devices based on PTC thermistor technology can generally dispense with control and regulating components as well as with over-temperature protection, PTC thermistor heating elements are used wherever measurement and regulating equipment as well as heating devices must be housed in tight confines. PTC Heating elements can be designed to be square, rectangular, round, ring or doughnut form, or housed in aluminum, stainless steel, silicon casing.

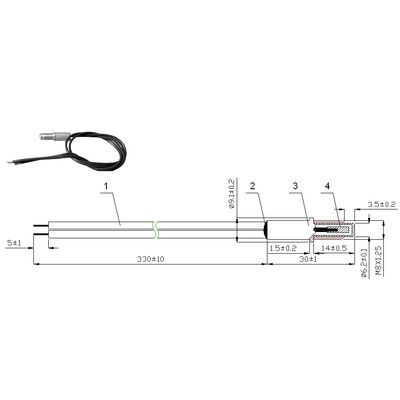

AMWEI - Threaded Al Case PTC Cartridge Heater Assembly
Thin rectangular PTC thermistor soldered with insulation cable, potted into threaded Al Housing, dimension Φ3.5×30 + M8×1.25 mm, Vmax 24 V, Insulation voltage 500V, PTC Surface temperature max 170C，Al case housing shell surface temperature around 125C. Threaded PTC Cartridge heating assembly suitable for pipe, tanks, vessel, container, equipment casings heating application. Threaded hex head design is ideal for tanks, vessel and pipe installation, as well as other industrial application, affords greater resistance to shock and vibration. Typical application such as automotive vehicles carburetor heating, water boiler, etc. More details in https://amwei.com/threaded-al-m8x30mm-12v-160c-ptc-cartridge-heater-assembly/

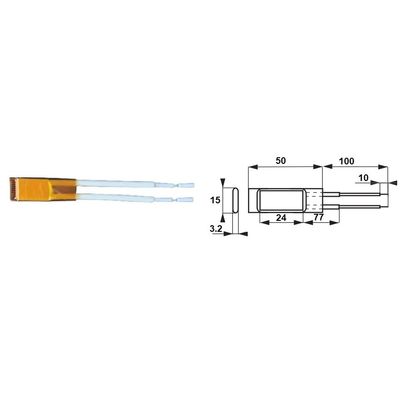

AMWEI - PTC Heater Chip Clamp Contact 3 Wraps Polyimide 100mm Cable Insulated
PTC thermistor chip fitting in two metal plates, 3 wraps Polyimide Kapton sleeve insulated tightly . Supply voltage 110 up to 240V, Surface Temperature 180, Insulation voltage 3750V. Self-regulation constant heating, no glowing parts, no overheating, energy efficient, compact design, long service life. More details in https://amwei.com/ptc-heater-polyimide-insulated-220v-110v-180c-24x15mm/

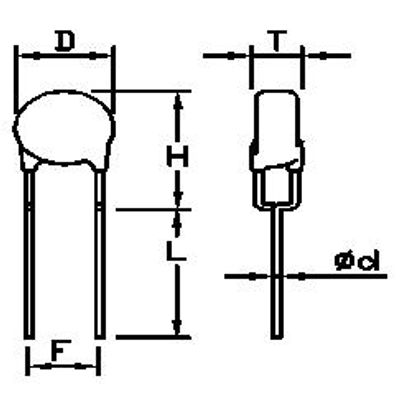

AMWEI - Murata Cross PTC Thermistor Resettable Fuse for Circuit Overload Protection
AMWEI PTC Thermistor for Circuit Overcurrent Protection 82 Ohm 0.6A 265V in radial leaded resin coated, ceramic diameter D8mm, T5.5mm, Pin length L25mm min, space 5mm, Murata PTGL07AR820M9A51B0 POSISTOR Alternative, Overload Short circuit protection for power supplies motor transformer meter equipment, etc. More details in https://amwei.com/murata-ptgl07ar820m9a51b0-ptc-82-ohm-265v/

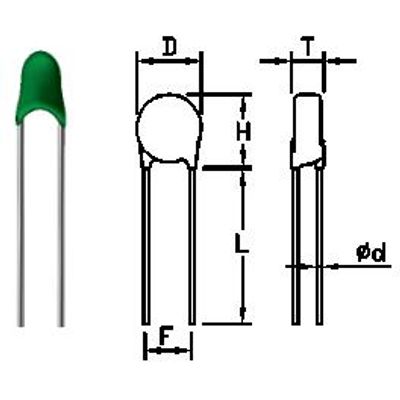

AMWEI - PTC Thermistors for Overcurrent Protection in Telecom Applications, Leaded Disk Coated
PTC Thermistor for Telecom Overload Protection, R25: 25 Ohm+/-20%, Vmax 250V Imax 1A. Leaded Disk Coated, ceramic diameter D6.5mm, T5.5mm, Pin length L25mm min, space 5mm, Compliant with ITU-T standards, lightning surges, power induction, power contact requests. Cross to EPCOS obsolete B59069B1120A051, GE RL1605-25-120-50-PTF. More details in https://amwei.com/telecom-ptc-leaded-coated-25-ohm-250v-1a/.

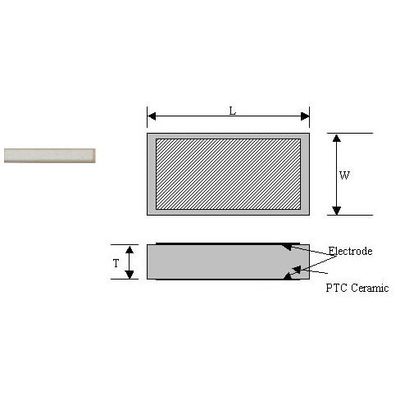

AMWEI - TDK Epcos Cross PTC Thermistor Heater Rectangular Clamp Contact
Self-regulating PTC Heater Chip, Rectangular Dimension 35X6X2.54mm, Vmax 265V, Surface Temperature 160C@220V, R25:1000 Ω ±50%, TDK Epcos B59102R0130A010 Alternative. Clamp contacting. Applied for 230V/120V heating, can be used in beauty products tool equipment appliances, such as hair curlers, fan heaters, coffee machines, glue guns, etc. More details in https://amwei.com/epcos-b59102r0130a010-ptc-heater-rectangular-230v-160c-1k-ohm/

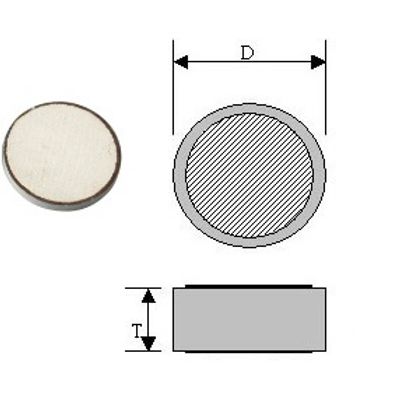

AMWEI - TDK Epcos Cross PTC Thermistors Heater Disk Solderable
Self-regulating PTC Heater Disk, Diameter 13mm, thickness 1.27mm, Vmax 30V, Surface Temperature 130C@12V, R25: 3-20Ω, TDK Epcos B59060A0120A010 Alternative. For diesel fuel preheating, defrosting, spray nozzle heating, Low-voltage appliances, etc. More details in https://amwei.com/epcos-b59060a0120a010-ptc-heater-disk-12v-9-ohm/
AMWEI - TDK Epcos Cross PTC Thermistor Heater Rectangular Clamp Contact
Self-regulating PTC Heater Chip, Rectangular Dimension 35X6X2.54mm, Vmax 265V, Surface Temperature 125C@220V, R25:1000 Ω ±50%, TDK Epcos B59102R0090A010 Alternative. Clamp contacting. Applied for 230V/120V heating, can be used in beauty products tool equipment appliances, such as hair curlers, fan heaters, coffee machines, glue guns, etc. More details in https://amwei.com/epcos-b59102r0090a010-ptc-heater-rectangular-230v-125c-1k-ohm/
