B2 Electronics Gmbh products

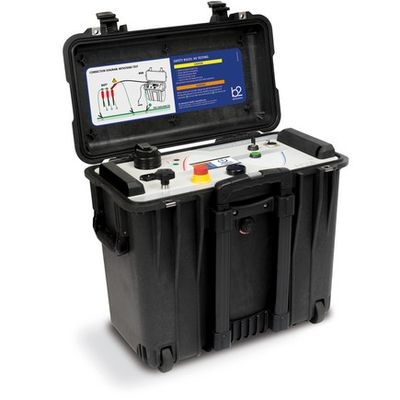

The HVA28 and HVA28TD are truly compact and portable VLF test sets which determine the condition of medium voltage cables. HVA28TD device includes integrated Tan Delta diagnostics capabilities, in comparison to HVA28 device, which can be with the TD diagnostics unit extended. They both perform VLF and DC testing, as well as sheath testing with sheath fault location mode.

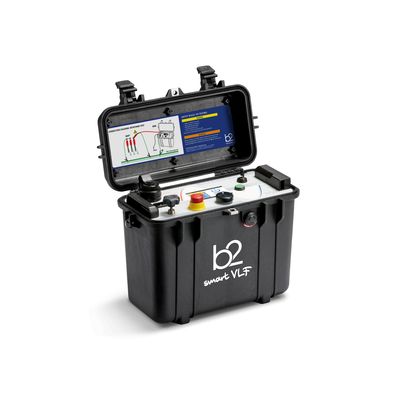

The HVA34-1 and HVA34TD-1 are truly compact and portable VLF test sets which determine the condition of medium voltage cables. HVA34TD-1 device includes integrated Tan Delta diagnostics capabilities and features TD leakage current correction (guard terminal), in comparison to HVA34-1 device, which can be with the TD diagnostics unit extended. They both perform VLF and DC testing, as well as sheath testing with sheath fault location mode.

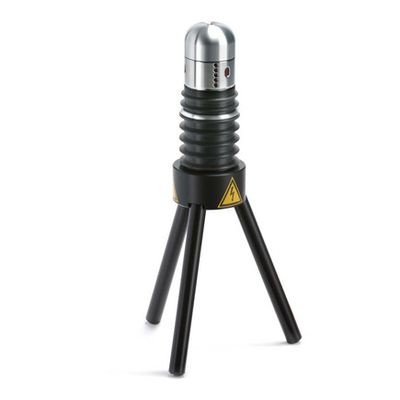

Tan Delta measurement is a proven, simple and reliable test method for evaluating the dielectric condition and a degree of degradation of the HV cables. Damages on cables caused by water trees can be easily and clearly identified. VLF test sets of the HVA series with corresponding voltage range serve as the ideal high voltage source for the TD30 device.

Tan Delta measurement is a proven, simple and reliable test method for evaluating the dielectric condition and a degree of degradation of the HV cables. Damages on cables caused by water trees can be easily and clearly identified. VLF test sets of the HVA series with corresponding voltage range serve as the ideal high voltage source for the TD60-MC device.
