Bosch Industriekessel GmbH - Industrial Boilers products

Bosch - Bosch Steam Boiler - Universal ZFR, ZFR-X

The ZFR steam boiler from Bosch offers maximum flexibility and a double modulation range thanks to two independent firing systems and exhaust gas paths - ideal for highly fluctuating steam requirements. With outputs of 18,000 to 55,000 kg/h of steam at up to 30 bar, the ZFR is the ideal solution for large industrial operations and power plants. Its high efficiency extends over the entire power range.
Thanks to project-specific equipment and optional superheated steam generation, the ZFR adapts perfectly to individual requirements. Options with low-NOx versions or for the use of CO2-neutral fuels make it future-proof. Intelligent Bosch control technology enables fully automatic boiler operation and smooth connection to automation systems. The well-proven ZFR design from Bosch ‘Made in Germany’ ensures durability and reliability.

Bosch - Bosch Hot water boiler - Unimat UT-M series

The Bosch UT-M hot water boiler offers efficient heating and process heat for a wide range of applications - from industrial processes to heating plants. With its output sizes of 750 to 19,200 kW heat at up to 16 bar and a temperature range of up to 190 °C, the UT-L adapts perfectly to individual requirements.
In combination with condensing technology, the hot water boiler achieves efficiencies of up to 105%, which reduces operating costs and emissions. Its compact design makes it easy to install and ensures quick heating. Thanks to project-specific control solutions and optional real-time monitoring, operational management is always optimized. Bosch offers the UT-M as a complete system from a single source and provides options for low-emission or CO₂-neutral operation. The proven, maintenance-friendly design achieves a long service life and very high reliability.

Bosch - Bosch Waste heat boilers

The Bosch waste heat boiler uses available waste heat for the environmentally friendly generation of steam and hot water - ideal in combination with combined heat and power plants or gas turbines. Thanks to a highly efficient tubular heat exchanger and optimised thermal insulation, the system achieves a high degree of efficiency. Since no burner is required, the waste heat boiler scores with favourable investment and operating costs. A sustainable, economical solution for waste heat utilisation.

Bosch - Bosch Condensate service module CSM

- Secure use of condensate in steam boiler systems
- Decreases in energy and water consumption due to reduced quantities of make-up water
- Minimisation of flash steam losses, desalting and blowdown quantities; reduced consumption of chemicals
- Reduced corrosion potential in the steam condensate system when using high-pressure condensate systems

Bosch - Bosch Expansion, heat recovery and blow-down module EHB

- For the cooling of blow-down water and the recovery of heat from desalinated water/condensate
- Increase in system efficiency of up to 2%
- Reductions in fuel, cooling water and waste water costs
- Rigorous compliance with official requirements thanks to automatic operation
- Fast and easy assembly, requires just a small number of connections before it can be used

Bosch - Bosch Hot water boiler - Unimat UT-H

The UT-H is the ideal solution for industrial processes with high temperature and pressure requirements. Bosch offers the high-pressure hot water boiler with outputs from 820 to 18,300 kW and temperatures of up to 225 °C. The UT-H is used in processing industries and district heating networks in particular.
Thanks to customer-specific design and future-proof technology, the UT-H remains economical and sustainable in the long term - also thanks to its convertibility to climate-neutral fuels. Individual control concepts with connection to central automation systems and remote monitoring from Bosch optimise operation. Custom designs as waste heat boilers expand the range of applications. The proven ""Made in Germany"" construction achieves reliability and durability.

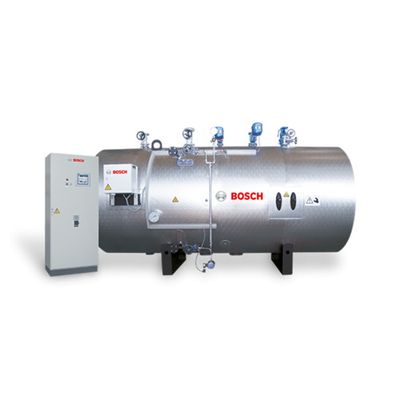

Bosch - Bosch Steam Boiler - Universal CSB

The Bosch CSB Dampfkessel offers a wide performance range from 300 to 23,600 kg/h at pressures of 0.5 to 16 bar and meets the strict emission requirements of the MCPD Directive (EU) 2015/2193. The compact boiler is ideal for industrial and commercial process heat applications (e.g. food) and offers a reliable supply with consistently high steam quality.
Thanks to the integrated economiser and helical heat exchanger tubes, the CSB achieves high energy efficiency. With coordinated burners and controls, the steam generator fulfils strict emission limits. The compact boiler can be operated with natural gas, oil, biogas or up to 20% hydrogen or equipped with a multi-fuel firing system. Its innovative design with a telescopic reversing chamber facilitates maintenance and inspection. The intuitive boiler control CSC (up to 4 t/h) or BCO ensures convenient operation.

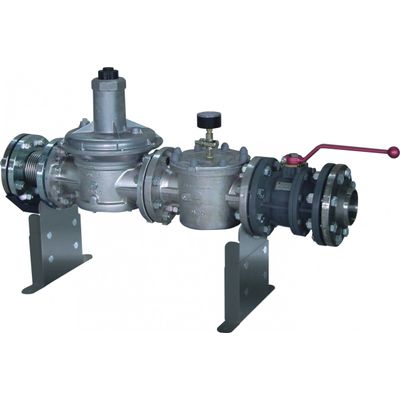

Bosch - Bosch Gas regulation module GRM

- For the reliable fuel supply with gas
- Preassembled for fast installation
- Rigorous compliance with official requirements
- Increased operating reliability
- Also for biogas- and hydrogen-fuelled systems
Highly efficient boiler systems with perfectly matched boiler house components ensure that low levels of energy consumption and emissions are achieved.

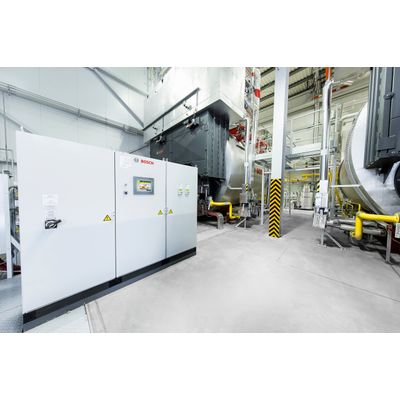

Bosch - Bosch Boiler control BCO

- Project-specific control system for optimum control of steam or hot water boilers
- Maximum supply and operating reliability thanks to integrated monitoring and protection functions
- Condition monitoring for consistently high system efficiency and availability of steam, hot water and heating boiler systems
- Intuitive operation with graphical symbols and state-of-the-art touchscreen displays
- SUC start-up, standby and shutdown system allows fully automatic high pressure steam boiler operation
- Easy connection to higher-level visualisation and control systems as well as remote access via MEC Remote

Bosch - Bosch Remote access MEC Remote

Comprehensive monitoring and alarm functions enable you to react quickly as needed to ensure the reliable availability of heating energy and process heat.
- Convenient remote monitoring of your boiler system and access to all important operating parameters
- Simply integrate the remote technology for connection via Internet or a company network
- Fast and cost-efficient online support from Bosch experts on request
- Safety first: Certified, multilevel security concept for your remote access
- Automatic alarm notification by text message or e-mail as an option so you can react quickly when needed
