Bosch Solar Energy AG products

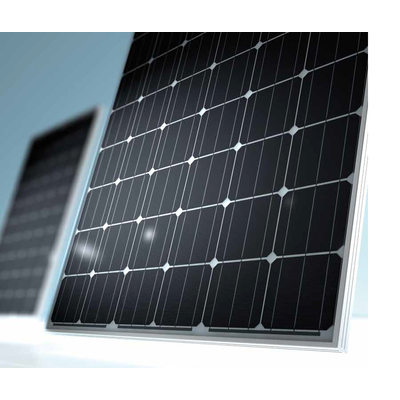

Our crystalline solar modules offer impressive features including: Excellent quality assured through use of the best European-standard components. Excellent processing and long-term stability right along the value-added chain. Higher specific yields due to positive power sorting. Professional customer service with unbureaucratic order and complaint processing carried out by designated contact persons. Simple, safe installation thanks to standardized clamp mechanisms.

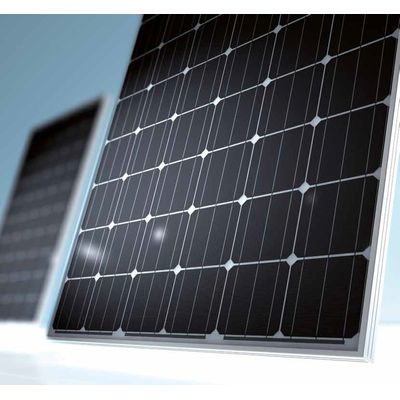

Our crystalline solar modules offer impressive features including: Excellent quality assured through use of the best. European standard components. Excellent processing and long-term stability right along the value added chain. Higher specific yields due to positive power sorting. Simple and secure installation with dovetailed Bosch Solar Rack.

Our crystalline solar modules offer impressive features including: Excellent quality assured through use of the best. European standard components. Excellent processing and long-term stability right along the. Value added chain. Higher specific yields due to positive power sorting.

Our thin-film modules offer impressive features including: Excellent annual yields for you and your customers, using non-toxic materials. Assembly systems that complement one another perfectly and are supplied from a single source thanks to collaborations with major assembly system manufacturers, including Bosch Rexroth. Straightforward, solid installation with low assembly outlay through adaptability of recognized standard components. Good usage options on e.g. east-facing, west-facing and slightly sloping roofs.

Our thin-film modules offer impressive features including: Excellent annual yields for you and your customers, using non-toxic materials. Assembly systems that complement one another perfectly and are supplied from a single source thanks to collaborations with major assembly system manufacturers, including Bosch Rexroth. Straightforward, solid installation with low assembly outlay through adaptability of recognized standard components. Good usage options on e.g. east-facing, west-facing and slightly sloping roofs.

Our thin-film modules offer impressive features including: Excellent annual yields for you and your customers, using non-toxic materials. Higher specific yields due to positive power sorting. Good usage options on e.g. east-facing, west-facing and slightly sloping roofs. Simple and secure installation with dovetailed mounting systems. Solar modules are not allowed to be grounded.

Mechanical Specification. External dimensions (length × width): 1206 × 506 mm. Thickness: 30 mm. Composition: glass-glass-module. Cell type: CIS thin film. Front glass: 3 mm cover glass, low iron (heat-strengthened). Rear glass 3 mm float glass. Frame aluminium frame, black anodized. Weight 10.5 kg. Junction box protection classification IP65, with bypass diode. Connector MC4 intermateable. Cable length 2 × 800 mm. Cable cross section 1.5 mm². Maximum static load 2,400 N/m². Operating temperature range -40 °C … +85 °C.

Our thin-film modules offer impressive features including: Excellent performance for all applications. Elegant design for visually attractive installations. Slender modular design for easy installation. High quality workmanship: “Made in Germany”.

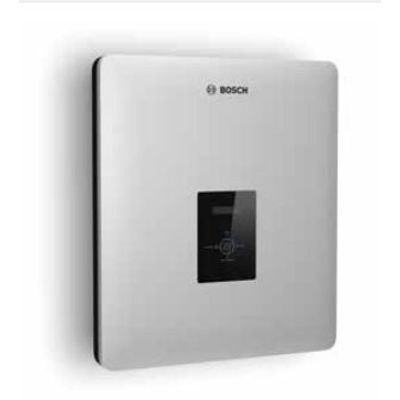

The single-phase string inverters of the BPT-S series set new standards in terms of ease of use and analysis opportunities. New communication interfaces allow fast and fault-free commissioning, along with simplified remote analysis. Commissioning with the e.Key: Thanks to touchless RFID technology, the installer is able to set the valid country parameters in seconds during the initial operation of a Bosch inverter. The e.Key, just the size of a credit card, is held up to the marked field in order to transfer the data. This rules out any faults in the settings.

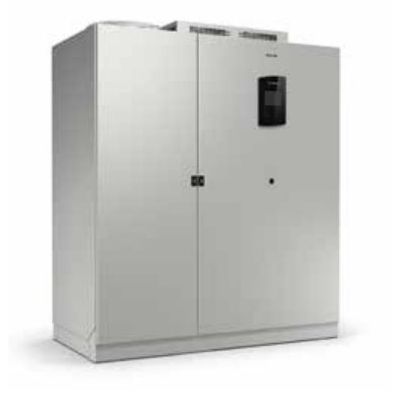

The new inverters of the Bosch Power Tec BPT-C series are characterised by high efficiency and reliability in all grid situations. They comply with all conditions of the ‘German Medium Voltage Directive’ (BDEW)* guidelines as well as all requirements related to interference resistance and operation security. The large temperature range as well as simple handling and commissioning make  the BPT-C series the ideal solution for large PV systems.
