Designing a great air inlet is all about attention to acoustics and pressure drop. Our experienced staff of acoustical engineers employs the most modern software to provide compliant designs. Computational Fluid Dynamics (CFD), as well as, Finite Modeling, Thermal, Buckling and Vibration Frequency Analysis are applied to guarantee superior pressure drop, distribution and velocities.

Braden has designed and manufactured diverter isolators since 1985. The bulk of our diverter experience is in combined-cycle gas turbine power plants, where extreme and sudden thermal changes necessitate thorough design foresight. We have also designed diverters for desulfurization (FGD) applications with several unique and patented features for improved flow distribution.

Braden is THE market leader in Exhaust Bypass, Simple Cycle, Exhaust Diffuser, and Exhaust Expansion Joint applications. Our extensive engineering and manufacturing experience allows us to design systems that will best meet your unique needs, including stringent specifications for space, pressure drop, emissions, and acoustics. Most often, we are the OEM choice to design the system once new Turbine models are released because of our experienced and vast Engineering resources.

Braden has developed Exhaust Diffusers and Exhaust Plenums for most OEM and retrofit applications. Our Exhaust Diffusers are designed very carefully using a proven, confident approach to the floating internal liner system. Because this area is so turbulent, we take extra care in our design to insure high reliability and our history shows no failures. With over 1000+ in operation, we have perfected the internally lined systems, and have also patented the transition from the unlined turbine flange (or externally lined), to the internally lined diffuser. In addition, our Diffuser designs offer every possible shipping configuration to minimize shipping cost and reduce field welding/erection time.

Braden Exhaust Expansion Joints provide a point of flexibility in the Exhaust ducts and relieve stress caused by system movement. Expansion joints are an important part of the ductwork since they prevent strain on the structure when it expands by yielding or providing a coupling for parts of the structure.

Braden’s extensive simple cycle exhaust experience provides an excellent foundation for simple cycle SCR/CO exhaust systems. For over forty years, Braden has specialized in handling the rigorous requirements of simple cycle exhaust systems. In that time, Braden has developed a skill set essential in providing quality SCR/CO systems. The high temperatures and turbulent flows of simple cycle machines require sound engineering design of internal structural members, which Braden has mastered with more than 1,500 simple cycle exhaust projects.

Consolidated Fabricators (ConFab) specializes in the engineering and manufacture of complex systems to support power generation, especially gas turbines. Both OEMs and their customers come to us to help produce complicated systems that incorporate mechanical, electrical and fluid control disciplines. With over 25 years of experience in this field, we are often called on to design improvements to existing systems or, in many cases asked to create something entirely new. Our fully-integrated Design and Manufacturing Engineering Department will take your project from conception through finished product, stressing ‘design for manufacturability’ to reduce lead times. Led by a dedicated Project Manger, our team offers a full range of Engineering Services from 3D design modeling, FEA analysis, drawings and prototyping. You can rely on our vast experience with an extensive array of codes and validation/certification criteria to deliver a great solution.

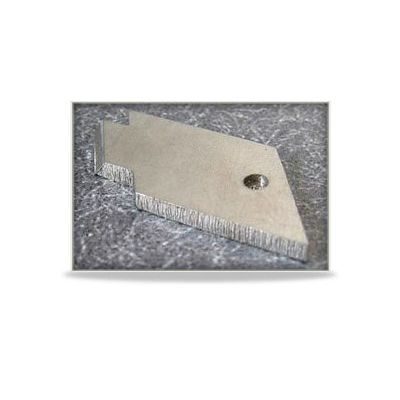

Consolidated Fabricators can supply replacement retainers for your gas turbine. We fabricate from an extensive offering of high performance alloys and routinely fulfill demanding specifications.

Consolidated Fabricators can make a large variety of replacement seals for your gas turbine. Call us for either built-to-print replacements of OEM parts or ask us to research and engineer a better design to suit your needs. Our capable engineers can design for short production runs to economically provide high tolerance parts from a variety of alloys.

In the oil & gas industry you need to focus on getting your product from in the ground to market as quickly and economically as possible. With Innova`s new Turnkey Compressor stations, we help you do just that by reducing the cost and time it takes for you to source, design, fabricate, procure, install and commission a compressor station.
