BSL-SOLAR products

Rated power : 20K Watts at 12m/s. Rotor diameter : 10m. Voltage : 360VDC. Weight : 383kg$. Dimensions : 91x85x85 cms. Start-up wind speed : 2m/s. Rated wind speed : 12m/s. Security wind speed : 45m/s. Rated rotating rate : 90r/m. Blade material : Fiberglass. Number of blades : 3. Overs peed protection : Yawing by controller. Tower height : 18 m. Tower diameter : 377 mm. Noise at rated speed : 6l.7db. Kilowatt Hours Per Year : 16872kWh@(5,5m/s). Kilowatt Hours Per Day : 46.2kWh @ (5,5 m/s). Warranty : 2 years.

Capacity: 500W. Input frequency: 50HZ± 5HZor 60HZ. Inversion voltage: 220V± 3% or 230V,110V. Inversion frequency:  50HZ± 2HZ or 60HZ. DC voltage: 12V. High-voltage protection: 9.8V. Low-voltage protection: 14.8V. Output wave form: sine wave. THD: ≤ 3%. Transfer: ≤ 4ms Automatic transfer. Recharge current: 5-8A. Transfer efficiency: 87%--90%. Protections: protection against short- circuit,overloadhigh-voltage ,reverse polarity protection and low-voltage protection.

Capacity: 1000W. Input frequency: 50HZ± 5HZor 60HZ. Inversion voltage: 220V± 3% or 230V,110V . Inversion frequency: 50HZ± 2HZ or 60HZ. DC voltage: 12V. High-voltage protection: 9.8V. Low-voltage protection: 14.8V. Output wave form: sine wave. THD: ≤ 3%. Transfer: ≤ 4ms Automatic transfer. Recharge current: 5-8A. Transfer efficiency: 87%--90%. Protections: protection against short- circuit,overloadhigh-voltage ,reverse polarity protection and low-voltage protection.

Capacity: 1500W. Input frequency: 50HZ± 5HZor 60HZ. Inversion voltage: 220V± 3% or 230V,110V . Inversion frequency: 50HZ± 2HZ or 60HZ. DC voltage: 24V. High-voltage protection: 19.5V. Low-voltage protection: 29V. Output wave form: sine wave. THD: ≤ 3%. Transfer: ≤ 4ms Automatic transfer. Recharge current: 8-25A. Transfer efficiency: 87%--90%. Protections: protection against short- circuit,overloadhigh-voltage ,reverse polarity protection and low-voltage protection.

Capacity: 1000W. Input frequency: 50HZ± 5HZor 60HZ. Inversion voltage: 220V± 3% or 230V,110V . Inversion frequency: 50HZ± 2HZ or 60HZ. DC voltage: 24V. High-voltage protection: 19.5V. Low-voltage protection: 29V. Output wave form: sine wave. THD: ≤ 3%. Transfer: ≤ 4ms Automatic transfer. Recharge current: 8-25A. Transfer efficiency: 87%--90%. Protections: protection against short- circuit,overloadhigh-voltage ,reverse polarity protection and low-voltage protection.

H236 W64cm 4-head, 12LED for each head, white light, lantern finishes can be chosen by customer: white, black, verde, rust brown. 3pcs C 1.2V 2800mAh NI-CD. Polycrystalline/monocrystalline for 10W. Light duration: 8-10 hours while fully charged.

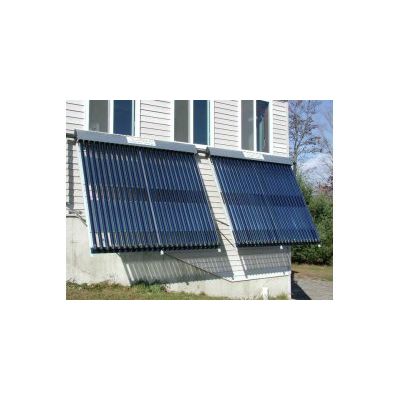

This kind of solar water heater absorbs the sunlight by vacuum tubes, then heats the water in the tubes and the water in the tanks. But we don"t use the water in the tank. So the hot water can be stored in the tank, the temperature can reach more than 90?. We use the copper coil as the heat exchanger.

This kind of PV systems absorb sunlight and change it into electricity,which is stored in the battery,can be used for the appliance or can connect with the electrical wire by a connected system for other use.

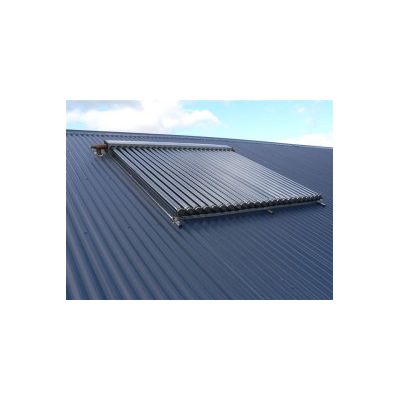

This type of solar water heater relies on the natural circulation of water between the vacuum tubes and tank. The vacuum tubes absorb the solar energy converting it into heat energy for use in water heating. As water in the vacuum tubes is heated, the density becomes lower. It will rises naturally into the tank, while cooler water in the tank flows down to the bottom of vacuum tubes, causing circulation throughout the system.

The factors referring to body and property security have been considered during designed the products. But incorrect connection will cause to breakdown. For your security, please do everything according to the following regulation.
