Cablel Hellenic Cables Group products

Submarine Power Cables

Cablel Hellenic Cables Group has manufactured submarine power cables with insulation from cross linked polyethylene (XLPE), elastomer (EPR) or paper, as well as submarine fibre-optic cables. The Group has expanded the facilities of its subsidiary Fulgor, transforming it into one of the most cutting-edge technologically advanced facilities for the manufacture of high and extra-high voltage submarine cables, of static and dynamic type, with alternate or direct current and with cross linked polyethylene (XLPE) insulation, as well as flexible submarine polyethylene pipes. The Group’s objective is to participate in national and international turnkey projects for underwater – submarine interconnections with submarine cables, submarine pipes, as well as coastal projects.

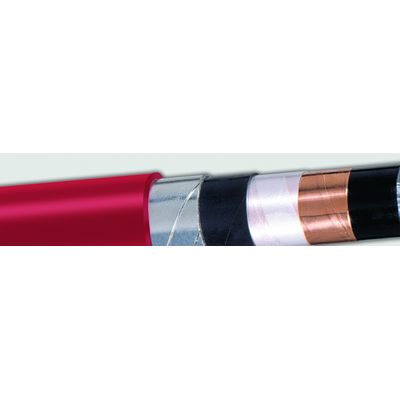

High and Extra-High Voltage Cables

The Group manufactures high voltage cables since 1970. More specifically, from 1970 to 1996 the Group was manufacturing paper insulated high voltage cables. From 1996 onwards, the group manufactures high voltage cables with cross linked polyethylene (XLPE) insulation. In 2008 the Group acquired the capacity to manufacture extra-high voltage cables with cross linked polyethylene (XLPE) insulation with nominal voltage up to 500kV.

Medium Voltage Cables

Medium voltage cables are constructed with copper or aluminium conductors and insulation either from XLPE, or EPR, or paper insulated. If required the conductors can be longitudinally waterblocked. Furthermore, the pipes can be constructed to be flexible (bare or tin-plated) for mining cables and other heavy duty applications.The metallic screen can be longitudinally and radially waterblocked. PVC, PE (MDPE or HDPE) and LSF are applied as outer sheath materials. Steel (or aluminium for single core cables) wires or tapes may be applied under the outer sheath, providing additional mechanical protection.Cables for special applications, halogen-free, fire-retardant, fire-resistant and with low smoke emissions can also be provided. Our products are available according to various national and/or international standards, as well as according to the demands-specifications set by the client.

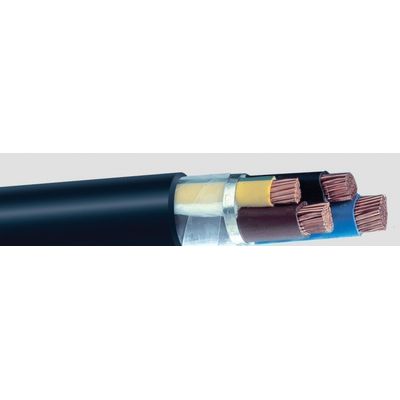

Low Voltage Cables

Low Voltage power cables are constructed with rigid, solid or stranded, copper and aluminium conductors, and flexible (bare or tin-plated) copper conductors. XLPE, PVC, LSF/LSOH and elastomer compounds are the main insulating and shielding compounds for these cable types.Steel (or aluminium for single core cables) wires or tapes may be applied under the outer sheath, providing additional mechanical protection. Cables for special applications, halogen-free, fire-retardant, fire-resistant and with low smoke emissions can also be provided. Our products are available according to various national and/or international standards, as well as according to the demands-specifications set by the client.

Copper Telecommunications and Fibre-Optic Cables

For more than 30 years, Cablel Hellenic Cables Group has designed and manufactured a wide range of copper telecommunications cables with plastic insulation, as well as loose tube or tight buffered fibre-optic cables for indoors or outdoors, and for underground or aerial installations. The telecommunications cables under the Cablel trademark are manufactured and checked according to all existing national and international standards (OTE, ELOT, VDE, BS, IEC, EN etc), simultaneously addressing special requirements for transmission, mechanical and environmental characteristics.

Composite Power/ Fibre-Optic Cable

The first composite power/optical fibre submarine cable was manufactured and installed by the Group in 1995.

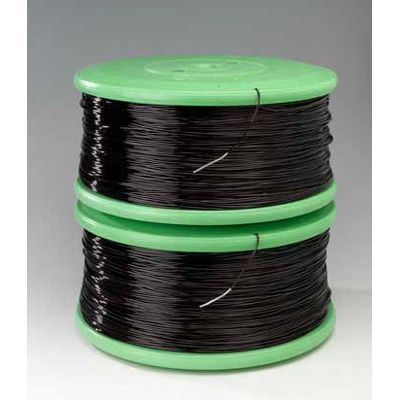

Enameled Wires

MEDIOTHERM - Model 200 AL - Enamelled Aluminium Wires

The insulating materials are subdivided according to IEC standards into insulating classes showing the corresponding maximum working temperature that must not be exceeded at any point of the winding. The table above outlines the recognized insulation classifications.
