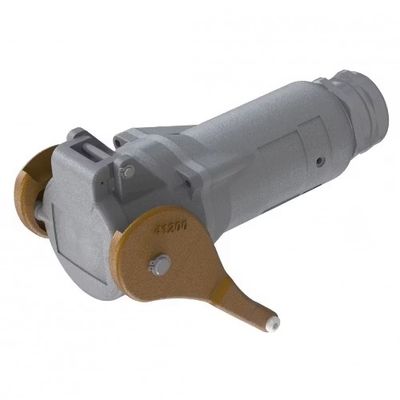

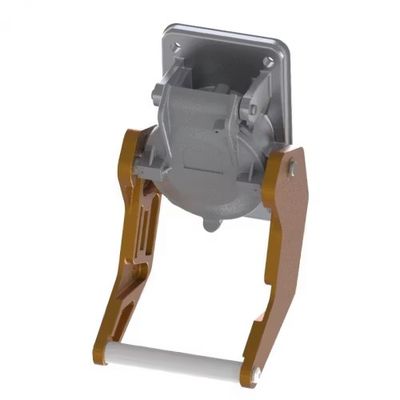

Connection type: Push & Pull. Pin Configuration: 4-pole: 420A 1,1kV 185mm2, Internal fibre optic \ 350A 7,2kV 150mm2 -> AMP, 5-pole: 320A 1,1kV 185mm2, 50-pole: 40A 500V 4mm2. Certification: EAC + AMP. Model name: X5. Keying position: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12. Accessories: External FO 18ch, Internal FO 8ch, Screw terminals, Kirk Key interlock, Wall bracket.

Connection type: Screw Ring. Pin Configuration: 4-pole: 420A 1,1kV 185mm2, Internal fibre optic \ 350A 7,2kV 150mm2, 5-pole: 320A 1,1kV 185mm2. Certification: EAC. Model name: S5. Keying position: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12. Accessories: Internal FO 8ch, Screw terminals.

Connection type: Screw Ring. Pin Configuration: 5-pole: 30A 690V 4mm2, 8-pole: 10A 415V 2.5mm2, 13-pole: 6A 230V 1.5mm2. Certification: EAC. Model name: S1. Keying position: 12. Accessories: Wall bracket.

Connection type: Push & Pull. Pin Configuration: 1-pole: 660A 690V 300mm2, 3-pole: 250A 690V 70mm2, 4-pole: 200A 690V 50mm2, 5-pole: 200A 500V 50mm2, 18-pole: 40A 500V 4mm2, 25-pole: 40A 50V 4mm2. Certification: EAC. Model name: X2. Keying position: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12. Insulator keying: 1-11. Accessories: Low interlocking (PC2-VL), Wall Bracket, Screw Terminal.

Cavotec has developed a wide range of systems that power STS cranes: Faster crane movement with high-speed motorised cable reels and extended horizontal travelling distances of up to hundreds of metres. Enhanced safety with Panzerbelt protection for mobile cranes. Access covers with turnover anchors, junction boxes and power connectors. Spreader cable reels with quick coupling and decoupling.

AMPMobile connects cruise vessels quickly and safely: Civil works costs minimised: trenches along the quay are not required. High operational flexibility along the berth: accommodates a wide range of vessels, regardless of connection point location. Easy storage: when not in use, AMPMobile can be disconnected and moved from the quayside for storage.

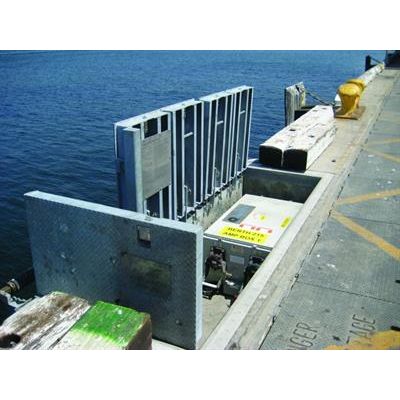

AMPVault are the shore power pits integrated along the berth to connect container and bulk vessels. No interaction with port operations. No interference with ropes, bollard and moving cranes. Safe and easy operations: One-man, fast and safe opening with EZ-lift cover assembly. Limited civil work: Minimum CAPEX due to fibreglass pre-formed enclosure.

AMPCaddy-B is a self-propelled battery-driven mobile system. It connects container and bulk vessels with greater flexibility at the connection point.

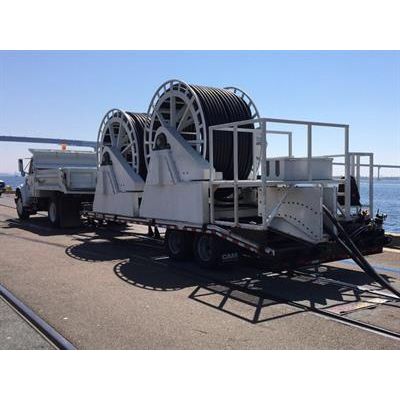

AMPTrailer is a manual mobile shore power cable management system. It offers flexibility to move the point of shore power connection away from crane operations.
