Chilicon Power LLC products

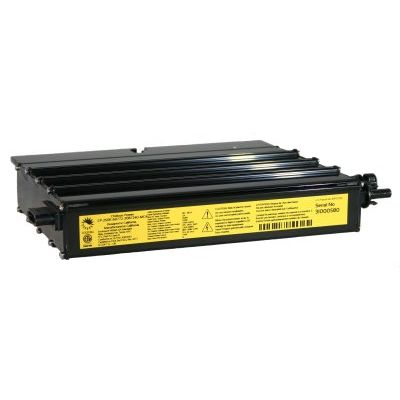

Chilicon Power CP-250 inverter performance leads the industry with sustained power production of 250 watts AC which eliminates clipping on 60-cell modules. Grid-interactive conversion occurs with a CEC rating of 96% with peak efficiency of 96.6%.

The GATEWAY monitoring system communicates with Chilicon microinverters, consumption monitoring clamps, and other smart home devices. It can be cloud interconnected or can run stand-alone. The GATEWAY provides a 7" 800 x 480 LCD Touch Screen making it informative and easy to use. Commissioning of the solar array`s configuration occurs on the gateway screen and site configuration is automatically posted to cloud.chiliconpower.com when a customer enables cloud interaction. There is no need to use a laptop to connect the customer`s site to the cloud since registration details are filled out on the touch-screen directly. PV array topology is also organized on the touch screen which enables single-step setup and verification of the system.

Chilicon Power CP-720 inverter performance leads the industry with sustained power production of 720 watts AC which provides well scaled output power compatibility for 60-cell (series), 72-cell (series), 96-cell (parallel), or 128-cell (parallel) modules up to 860W DC. Grid-interactive conversion occurs with a CEC rating of 96% with peak efficiency of 96.6%. The inverters are Rule-21 compliant and can provide reactive power on demand.

Chilicon Power CP-250E inverter performance leads the industry with sustained power production of 289 watts AC which provides well scaled output power compatibility for 60-cell and 72-cell modules up to 350W DC STC. The CP-250E has extended input voltage range and supports 72-cell (CP-250E) modules. Grid-interactive conversion occurs with a CEC rating of 96% with peak efficiency of 96.6%. The inverters are Rule-21 compliant and can provide reactive power on demand.

The trunk cabling portion of a microinverter system is extremely important since it directly impacts labor costs at an installation site. The Chilicon modular trunk and branch cabling system incorporates industry standard 10 AWG VNTC tray cable with a UV and cut resistant outer jacket. Each `modular` component of the the 4 conductor cableplugs together right on the job site. For the first time, you can mix landscape and portrait mode PV module layouts side-by-side on the same string. In addition, the trunk cable is `Self-Terminating` as shown in the figure below. There is no longer a need to procure `termination caps` for the end of each microinverter string.

The GATEWAY monitoring system communicates with Chilicon microinverters, consumption monitoring clamps, and other smart home devices. It can be cloud interconnected or can run stand-alone. The GATEWAY provides a 7" 800 x 480 LCD Touch Screen making it informative and easy to use. Commissioning of the solar array`s configuration occurs on the gateway screen and site configuration is automatically posted to cloud.chiliconpower.com when a customer enables cloud interaction. There is no need to use a laptop to connect the customer`s site to the cloud since registration details are filled out on the touch-screen directly. PV array topology is also organized on the touch screen which enables single-step setup and verification of the system.
