Cleaver-Brooks products

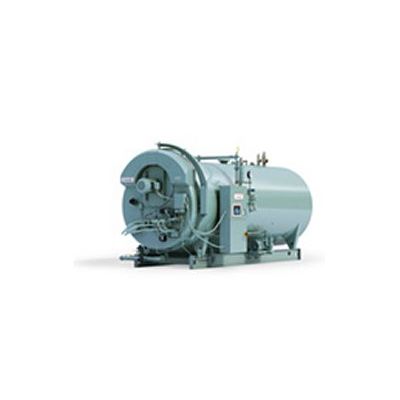

The Cleaver-Brooks Model 4WI is a wetback firetube boiler designed with 5 square feet of heating surface per boiler horsepower for maximum guaranteed efficiencies.

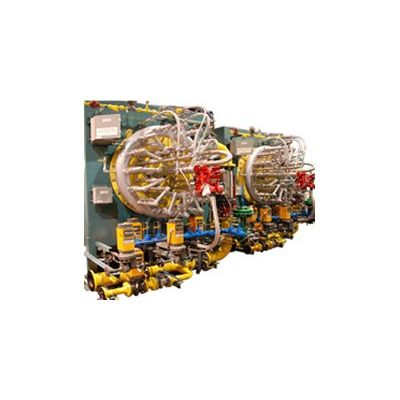

Years of experience and expertise allow NATCOM to meet the rigorous standards of the utility industry. Our proven Utility Burner systems provide solutions for new emissions requirements, fuel conversions, and retrofit upgrades in industrial, utility, and power boiler facilities.

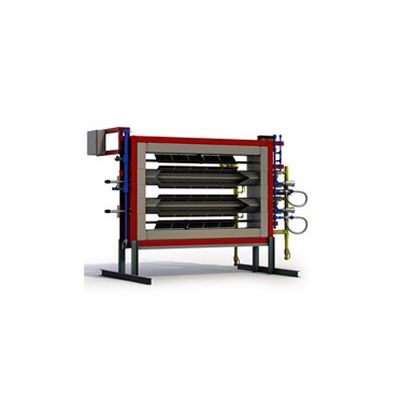

NATCOMs duct burner technology ensures the lowest levels of NOx, CO, VOC, and PM emissions available, even in the most challenging service conditions. NATCOM is the only duct burner supplier to offer a complete system with an innovative duct burner solution for the cogeneration and combined cycle markets.

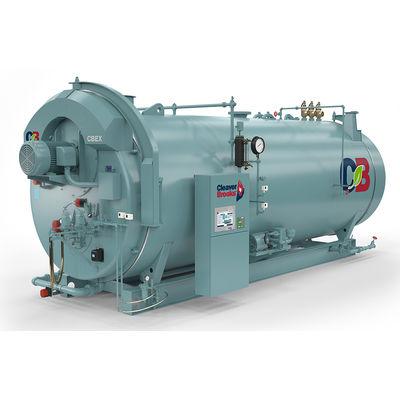

The Cleaver-Brooks CBEX firetube boiler featuring EX technology is a completely integrated boiler, burner, and controls system. Every core component has been designed and built by Cleaver-Brooks to work together, resulting in the most efficient and lowest-emissions firetube system ever built. The CBEX achieves higher operating efficiency than competitors` boilers, leading to lower fuel consumption over the life of the boiler. It can also burn renewable fuels and meets the lowest possible emissions of

The FLX boiler package includes a burner, trim, and control system for a completely integrated and engineered solution from a single source. Each boiler design was witness tested by a third party in Cleaver-Brooks state of the are boiler laboratory to ensure maximum reliability. FLX has distinct design features that include non-welded ferrule tubes for ease of tube replacement; removable sectioned side panels permit full access to all tubes. FLX boilers are a 5-pass cross flow water tube design, optimized through computational fluid dynamics to maximize heat transfer thru every pass. Unlike competing designs, FLX features a water-cooled furnace and fireside passes that do not require baffles, which lowers refractory maintenance costs throughout the boiler’s life and reduces the total cost of ownership.

The ClearFire®-CE (CFC-E) is a fully assembled, high-mass firetube condensing boiler with a large-water-volume pressure vessel. The high-mass design equates to a low pressure drop, reducing pumping energy with no minimum flow requirements. The pressure vessel is also thermal shock proof, capable of high-delta-T system designs to maximize condensing and reduce flow rates. The highly effective fireside heating surface with industry leading AluFer® tubes leads to superior efficiencies in all operating conditions. The modulating, premix burner control automatically adjusts the air/gas mixture for maximum burner efficiency. The linkageless burner provides fully modulating turndown without the use of complex air/fuel mixing valves. The dual-return connections have the ability to increase condensing in the boiler and raise efficiencies by 6%+ more than a single-return boiler.

The ClearFire-H is a compact horizontal, gas-fired, steam boiler designed for all of your steam heating and process needs, available in ten sizes. The AluFer® tubes with extended fireside heating surface provide maximum heat transfer for superior performance with a small installed footprint The premix burner automatically adjusts the air/gas mixture without the use of additional controls for optimum combustion performance, while the fully modulating burner delivers precise steam operating pressure meeting load requirements with minimum cycling. 85% efficiency is achievable for high-pressure steam with an optional flue gas economizer package.

The Cleaver-Brooks Model WB is an immersion-element hot water boiler with a vertical, insulated vessel. This boiler is designed for the heavy-duty, continuous demand of commercial and industrial applications. Vessel sizes range from 12" to 42" diameter with an output spanning 12 kW to 3,360 kW. A typical Model WB boiler system includes operating controls, elements, fuses, contactors, safety valve, and instrumentation.

Our long history has taught us that one size skid-mounted system can’t meet every need. Which is why we designed our ClearFire® and CBT Vertical steam boiler based systems to be adaptable while still being pre-engineered and assembled, offering you the lowest total cost of installation and ownership. Combine up to three boilers in a pre-engineered system. Additional boilers or accessories can be added as a custom-engineered solution. Boiler: A great steam system starts with the right boiler for the application. Our ClearFire-H and CBT pre-engineered skid packages include the most efficient and easy-to-operate steam boilers on the market.  Select the combination of boilers and accessories to meet the process and redundancy requirements. Feed Water System: Model FSH & FSV Stainless Steel condensate return and feed water tanks including SS impeller pumps for reliability and long life.

The CBCW is the newest addition to the Cleaver-Brooks IWT family. Designed with a 100% membrane water-cooled furnace, this boiler system includes a high-efficiency boiler and burner, heat recovery economizer, advanced control system, and complete exhaust stack, ducting and platforms. All available at shortened lead times and includes comprehensive technical documentation.
