Model : Automatic String layup Machine. Cycle time : 6.5S/string for Robotic Layup, 12S/String for Gantry Layup. Colour : Customized.
Dimension : 2860mm`2600mm `2000mm. Gross Weight : 1530KG. Failure Rate : Sl%. Rate of cells broken : sO.01%. Compatible Cell Type & Size : 5BBto15BB. 156 mm to 220mm. Full, Hall & 1/3. Compatible module size : Length: 1580-2500mm. Width: 800-1400mm; (module cell: 48pcs. 60pcs,72pcs, 120cells and 144cells). Distance between string of cells : 1-10mm (flexible). Precision : Locating precision of cell string ist0.3 mm. Floor Area : 3600mm* 3000mm. Minimum load-bearing pressure of ground : 5 KN/M2. Conveyor height of Module : 950150mm. Power Source & Connection : 3phase5line380Vt5%,  50Hz±2%: 220V+/-5%;. Rated Power : 4.5KW. Air Source & Connection : 0.6-0.8 Mpa, 550 L/min; ©12.

Cycle time : 255. Color : Aluminum alloy (Default). Frame color :White. Dimension : Outside (L*W*H): 2494mmx1490mmx1600mm. Gross Weight : About1000KG. Compatible module size : Length: 1S80-2500mm. Width: 800-1500mm. Advantage : Fixed modules position, power on. test hi-pot automatically, give alarm if defection Floor Area : 2500mmx1500mm. Minimum load-bearing pressure of ground : 5 KN/M2. Conveyor height of Module : 950±50mm. Power Source & Connection : 380V±5% ; 50Hz/60Hz±5%. Rated Power : 0.75 KW. Air Source : 0.6MPa-0.8MPa ; consumption* i200L/min. Operating Ambient Temperature : + 10 "C - -30"C.

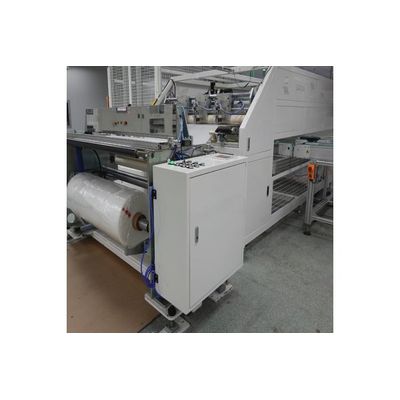

Cycle time : lessthen 25S. Dimension :  5000`1800*1650(L*W*H) with template loading machine. 4500* 1800* 1650 (L* WH) without template loading machine. Gross Weight : 1500KG. Cut dimension : Cut length: 50~25OOmm, max cutting width: 1400mm. Max material roll diameter/weight : 200~600mm; 500KG. Available cutting width : 1400mm. Cutting punch life time : 3 million times. Power Source & Connection : 380V; 50Hz ; International standard plug. Rated Power : 5.0KW.

Cliantech Solutions is your true partner for solar product and solution needs. Being a leading and experienced PV Module Turnkey Line Supplier in India, we offer an extensive range of Solar Products and Solutions. Our range of products includes Solar EL Tester, Solar Sun Simulator, Solar Stringer, Tabber & Stringer, Solar Laminator, Solar Cell Cutter & Tester and Multi Busbar Stringer. We, at Cliantech Solutions, are a reputed supplier of Solar Module Line Machines or Equipments in India. All our solar products sourced from a trusted and licensed PV Module Turnkey Line Supplier in China. Due to healthy relationship with our business partner in China, we are capable of offering high-quality PV Panel Manufacturing Solutions to you,our esteemed clients in India and abroad.

The primary work of this Solar EL Tester is to spot the core defects of solar modules with the use of electroluminescence. It examines and finds out the breakage, micro-crack, pseudo-soldering of the modules, and broken fingers of the cells. Further, this Solar Electroluminescence Tester finds and examines cell mismatch or stringers with diverse power rating.

A Solar Sun Simulator is the basic device to categorise photonic properties. The primary objective of this technology is to provide illumination of natural sunlight to manage indoor test facility inside a lab. The simulator is used to fake sunlight in a lab setting. Its light source is designed to produce spectral composition and similar intensity of natural sunlight.

Cliantech Solar Stringer is precisely engineered to function well and be reliable and cost-effective for users. Our Tabber and Stringer has four primary noticeable elements – artificial vision, servo-drives, sophisticated control over IR soldering process, and busbar ribbon power systems. Its usage enables you to have highly correct welding experience and accelerates your soldering process. Due to user-friendly interface, you can adjust the gap between cells and the length of string tail ribbon and head ribbon. It makes you do contactless IR soldering without generating high pressure in the cell.

Solar Laminator is used to laminate the solar cells of a module to enhance their functional life. This Solar Panel Lamination Machine takes the module in and gets a heat of up to 135°C for around 20 minutes in the lamination process. The lamination makes solar cells to last for more than 25 years. This Solar Laminator comes with an adjustable laminating pressure and functions continuously for 24 hours in extreme temperature up to 135°C. During the lamination process, it generates lower noises and saves more energy. Our Solar Laminators are cost-effective for your manufacturing, fabrication, or lamination businesses.

Our Multi Busbar Stringer is a fully programmed machine that you can use with several different kinds of monocrystalline, or silicon solar cells to sold them into a string. You can use this MBB Stringer for half cells and conventional cells. You can do everything, from cell feed to string outlet automatically with the utilisation of SCARA robot, Servo, PLC, and industrial image processor system.

Our Solar Cell Cutter is a personalised Solar PV Cell Cutter and ideal for the production of low power modules. Further, you can use this Solar Cell Cutter Tester & Tester for your research work. Whether the work is cutting or testing, the operator has to do cell loading and unloading. And the machine for Solar Module Line Automation executes a programmed cut with the usage of a diamond paste wheel, which is running at a higher speed. To perform the designated job, this Solar Cell Cutter & Tester needs air supply.
