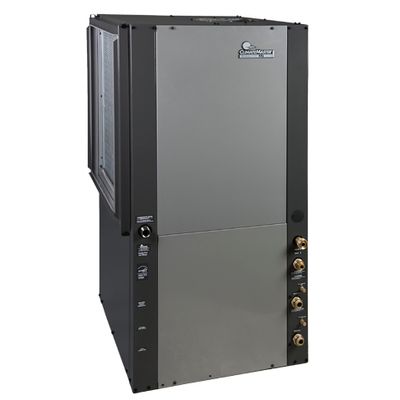

Model VE - Trilogy 45

The Trilogy 45 (VE), is for those applications where domestic hot water generation is not required. For hot water applications consider Trilogy 45 Q-Mode® (QE) models. Optional iGate® ClimaZone™ allows you to direct your heating and cooling needs to designated zones providing optimal comfort for the complete home

ClimateMaster Geothermal Heat Pump

Trilogy - 45 Q-Mode (QE) and Trilogy® 45 (VE) Series

Part-load values up to 45.1 EER/ 8.7 COP, Q-Mode Technology (QE Only), vFlow® Internal Variable Water Flow Control, iGate® Communicating Controls, Variable Speed ECM Indoor Fan, Vertical, Horizontal (field convertible discharge), and Downflow Configurations. Only dealers who have been trained on both the following classes in the past two years can sell the Trilogy: CM202 Service Installation Class, Trilogy Training Class

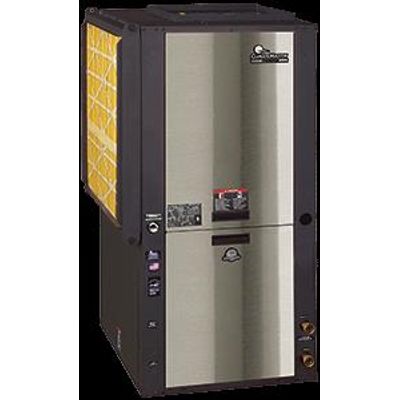

Tranquility - Model 30 Q-Digital Series (TE) - Packaged Geothermal Heat Pumps

Part Load Values up to 34.4 EER/ 7.0 COP, 2-Stage Compressor, vFlow® Internal Variable Water Flow Control, iGate® Communicating Controls, Variable Speed ECM Indoor Fan, Vertical, Horizontal (field convertible discharge),and Downflow Configurations.

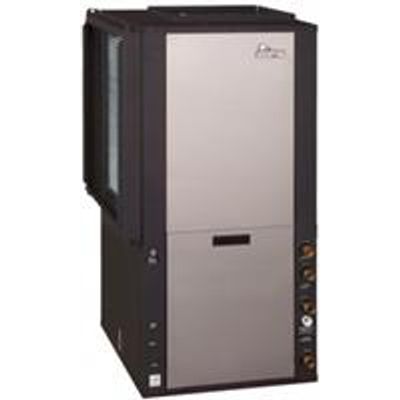

Tranquility - Model 22 Digital Series (TZ) - Packaged Geothermal Heat Pumps

Part-load values up to 29.4 EER/ 5.5 COP, 2-Stage Compressor, vFlow® Internal Variable Water Flow Control, iGate® Communicating Controls, Variable Speed Indoor Fan, Vertical and Horizontal Configurations.

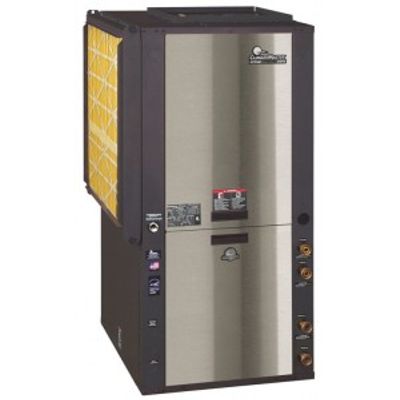

Tranquility - Model 20 Series (TS) - Packaged Geothermal Heat Pumps

Part-load values up to 29.5 EER/ 6.1 COP, 1-Stage Compressor, External Fixed Speed Water Flow Control, Non-Communicating Controls, Single Speed Indoor Fan (Standard), Variable Speed Indoor Fan (Optional), Vertical, Horizontal, and Downflow Configurations.
