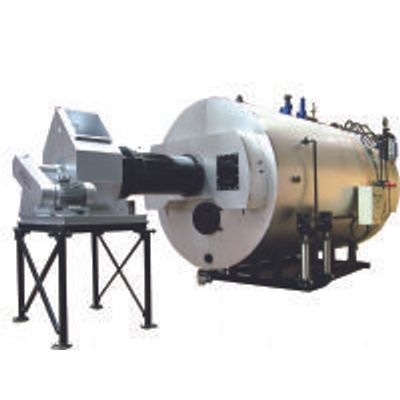

Cochran has joined forces with leading biomass energy business Scot Heat & Power to offer a fully integrated steam and hot-water biomass energy solution. This fully integrated turnkey service encompasses the full spectrum of design and specification, through to complete boiler supply, construction and installation. The service can include the long term supply of chipped or pelletised wood based biomass fuel and a comprehensive package of operator training, parts, maintenance, repair and service programmes.

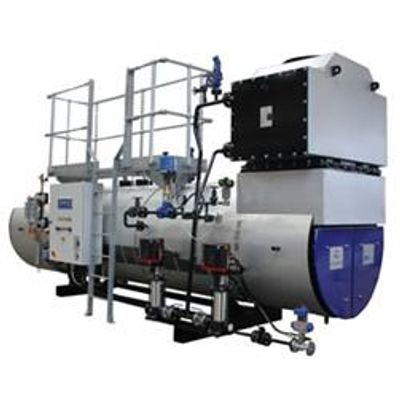

Cochran Heat Recovery boilers are versatile as steam or hot water applications and are designed for operating in conjunction with a wide range of heat generating equipment, such as gas turbines, reciprocating engines, incinerators, gasifiers and other process heat plant.

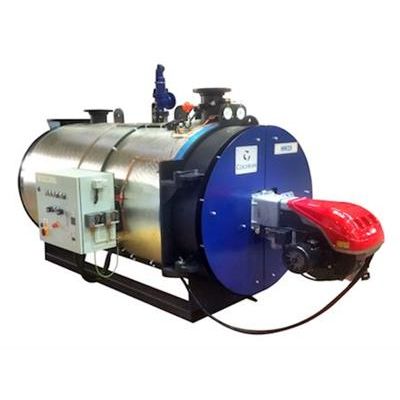

The Cochran HW29 series of compact hot water boilers has been developed to meet today’s demands for higher operational efficiencies and lower emissions. Built to the latest harmonised European codes, the HW29 series utilises cutting edge combustion and control equipment. The fully wet back design provides industry leading levels of efficiency and low NOx emissions. Available as the HW29 LT for low temperature hot water applications, built to EN14394 and the HW29 HT for medium and high temperature applications, built to EN12953. The wide range of outputs from 450kW to 4.1MW provide energy saving, low emission solutions for all commercial and industrial applications.

For larger Hot-Water system applications the Cochran HW34 series offers a combination of impressive performance and premium quality manufacturing. The conventional three pass full wetback design provides industry leading levels of efficiency and low NOx emissions. Built to the latest harmonised European codes the HW34 series utilises industry leading combustion and control equipment. Available as the HW34 LT for low temperature hot water applications, built to EN14394 and the HW34 HT for medium and high temperature applications, built to EN12953. A wide range of standard outputs from 5MW to 16MW provide energy saving, low emission solutions for all larger industrial applications. Bespoke twin furnace designs for outputs up to 30MW can be supplied.

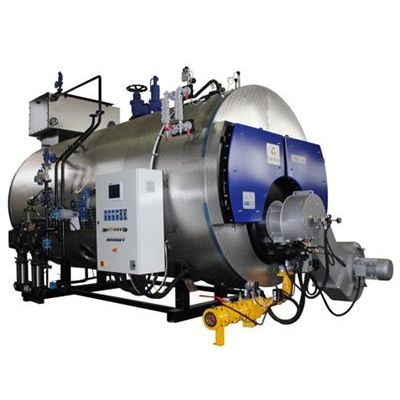

Cochran’s ST37 Package Steam Boiler is of horizontal three pass wet back design and constructed in accordance with BS EN 12953.  This CE marked boiler is designed to meet the latest European environmental  legislation and Medium Combustion Plant Directive (MCPD).  Suitable for any application, the design features Cochran’s low NOx, low noise burners as standard, and are available with a comprehensive range of control options.
