Cubic Instruments (Wuhan) Ltd. products
Syngas Analyzer

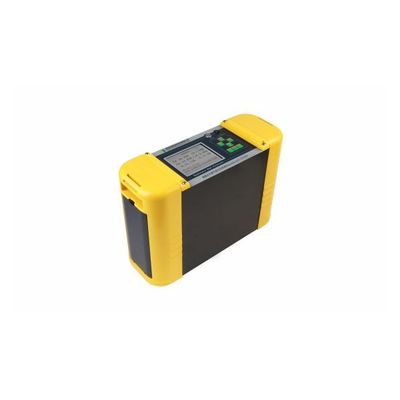

Cubic Instruments - Portable Infrared Syngas Analyzer
Gasboard-3100P is a portable syngas analyzer based on NDIR ,TCD and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination and calculate heat value.
Cubic Instruments - Online Biogas Analysis System
Online Infrared Gas Analysis System Gasboard-3500 is an online monitoring system with wall-mounted ex-proof enclosure, mainly used for continuous measurement for different combustible fuel gases, such as biogas, syngas, natural gas and so on. Composed by various sensors, Gasboard-3500 has a very flexible configuration and can measure CH4, CnHm, CO, CO2, H2, O2, H2S, Calorific value, Wobbe index, etc. It is widely used in different industrial hazardous area, such as biogas plant, landfill plant, biomethane, natural gas city gate, LNG transportation and so on. Besides combustible gas quality check, it can also be used for calorific value adjustment of natural gas or LNG vaporized gas, H2 & NG gas blending, optimization of air-fuel ratio for turbines and furnaces and other applications. Modular sensor design enables the feature of easy maintenance.
Cubic Instruments - Online Infrared Syngas Analyzer
Gasboard-3100 is a stationary syngas analyzer based on NDIR ,TCD and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination and calculate heat value.
Cubic Instruments - Infrared Syngas Analysis System
Cubic Instruments - Infrared Syngas Analysis System
Gasboard-9031EX is an online syngas monitoring system that delivers real-time measurements of CO, CO₂, CH₄, H₂, O₂, C₂H₂, C₂H₄, CnHm, and calorific value for comprehensive syngas analysis. Developed based on PTC approved NDIR and advanced TCD and ECD technologies, Gasboard-9031EX provides highly accurate multi-gas analysis in demanding industrial environments. The system is ideal for gas monitoring in diverse industrial applications including heat treatment furnace atmosphere control, metallurgical processes, CDQ systems, and chemical operations such as syngas production, hydrogen poduction, and petrochemical refining.Ultrasonic Gas Flowmeter
Cubic Instruments - Residential Gas Meter
BF-2000 Residential Gas Meter is a pre-paid type gas meter embedded with Cubic’s ultrasonic gas module which have self-owned intellectual property. It is suitable to be used in community biogas projects that supplying biogas to families directly for cooking, and some other small scale biogas applications.
Biogas Analyzer
Cubic Instruments - Online UV-DOAS Biogas Monitoring System
Gasboard-3500UV is the new generation biogas monitoring system that primarily designed based on UV-DOAS technology to measure H2S concentration precisely before and after H2S scrubber, and extended with modular sensor of CH4 (NDIR), CO2(NDIR) and O2 (ECD) to realize online continuously monitoring of biogas quality without purging cycle required.The 2 sampling channels design before and after scrubber enable it to provide an ideal solution to guarantee the H2S scrubber efficiency, protect downstream expensive equipment from the damage of overload H2S, minimize the investment for users and optimize the biogas monitoring process.
Cubic Instruments - Online Biogas Monitoring System
Gasboard-9060 Online Biogas Monitoring System is designed to measure the concentration of CH4 ,CO2 ,H2S and O2 continuously in different biogas applications. It consists of four parts: Gas sampling and conditioning unit, Gas analysis unit, Control unit for auto drain and Data transmission, multiple sampling points is supported. Automatically proceed sampling, analyzing, drainage and so on process. Realized unattended operation 7*24hrs biogas monitoring.
Cubic Instruments - Online UV Biogas Analyzer
Gasboard-3200UV is the new generation rack type biogas analyzer that primarily designed based on UV-DOAS technology to measure H2S concentration precisely before and after H2S scrubber, and extended with modular sensor of CH4(NDIR), CO2(NDIR) and O2(ECD) to realize online continuously monitoring of biogas quality without purging cycle required.The dual measurement ranges of UV-H2S detector makes it very suitable to be used to monitor H2S concentration difference before and after scrubber. It provides an ideal solution to guarantee the H2S scrubber efficiency, protect downstream expensive equipment from the damage of overload H2S, minimize the investment for users and optimize the biogas monitoring process.
Cubic Instruments - Online Infrared Biogas Analyzer
Gasboard-3200 online biogas analyzer is a rack type analyzer with standard 3U enclosure which is very convenient for system integration or bench top use in lab. It`s designed to measure CH4, CO2, H2S and O2 concentration simultaneously in different biogas applications, like landfill, water treatment, CDM projects, anaerobic digestion and other fermentation processes.
