Danstoker A/S products

Type: Low pressure steam boiler, 3-pass, CE marked. Fuel: Oil/gas. Steam rating: 630 – 4.000 kg/h. Heat capacity: 420 – 2.600 kW. Pressure: 0,7 – 1 bar-g.

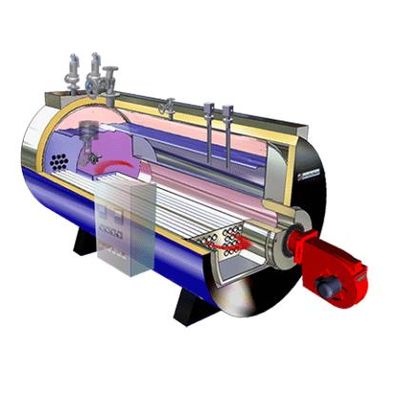

Type: High pressure steam boiler, 3-pass, CE marked. Fuel: Oil/gas. Steam rating: 1.000 – 34.000 kg/h. Heat capacity: 650 – 22.000 kW. Pressure: 8 – 20 bar-g, max 36 bar-g.

Type: High pressure steam boiler, 3-pass, Twin furnace, CE marked. Fuel: Oil/gas. Steam rating: 20.000 – 68.000 kg/h. Heat capacity: 13.000 – 44.000 kW. Pressure: 8-20 bar(o), max 36 bar-g.

Type: Hot water boiler. 3-pass. Minimum 120 mm insulation. Fuel: Oil/gas. Heat capacity: 1.000 – 10.000 kW. Pressure: 4 – 10 bar-g, max 110°C.

Type: Combined panel-wall and fire tube boiler. Low and high pressure hot water boiler and high pressure steam boiler.

Type: High pressure steam or high pressure hot water boiler. 3-pass. Fuel: Solid fuel/biomass. Steam rating: 800 – 15.000 kg/h.
Heat capacity: 525 – 10.000 kW. Pressure: Design pressure max 43 bar-g.

Type: High pressure steam or high pressure hot water boiler. 3-pass. Fuel: Solid fuel/biomass. Steam rating: 800 – 16.000 kg/h.
Heat capacity: 525 – 10.000 kW. Pressure: Design pressure 8, 12, 16 and 19 bar-g.

Design and development of special boilers and economizers for heat recovery of exhaust gases originating from chemical and industrial processes. The waste heat is recovered in single, double or triple-pass boilers provided with low-temperature economizers or integrated superheaters in the steam boilers. Ancillary system and component supplies are adapted to match each client’s specific wishes and requirements.

Type: Horizontal / vertical flue gas boiler for steam. Designed for installation after engines. Fuel: Oil/gas. Technical info: Engine size: 0,4 – 20 MW, max 46 kg Flue gas/sec., max 28 bar-g,

Type: Horizontal / vertical flue gas boiler for hot water. Designed for installation after engines. Fuel: Oil/gas. Technical info:  Engine size: 0,4 – 20 MW, max 46 kg flue gas/sec., max 28 bar-g.
