Deepa Solar Systems Pvt. Ltd. products

DEEPA SOLAR specializes in Manufacture of photovoltaic modules for on- and off-grid applications as well as standard and customized photovoltaic systems for stand-alone and especially roof top applications.

Solar power plant is based on the conversion of sunlight into electricity, either directly usingphotovoltaic(PV) and tracking systems to focus a large area of sunlight into a small beam.Photovoltaic converts light into electric current using the photoelectric effect.

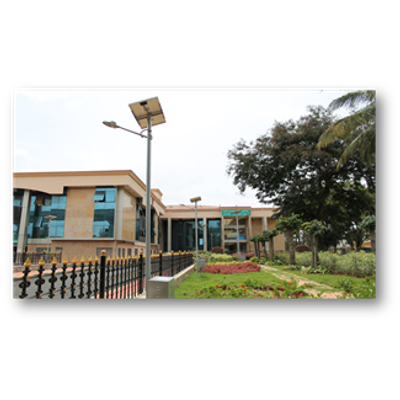

Deepa’s Solar Street Lighting Systems are raised light sources which are innovatively integrated with power generation, storage and maintenance system, CFL / LED lamp, battery, control electronics, Solar Photo Voltaic Module, Mounting structure and associated hardware. This integrated system is a modern lighting system for illumination of streets, squares, junctions, avenues and key intersections located in areas without access to the power grid. The lighting system is designed aesthetically and really useful for conserving power and producing light in a hassle free manner for the benefit of public. It helps the clients to reduce the power bills and a solution to power cuts. Deepa Solar Systems has a wide range of Solar Street lights which includes CFL and LED lamps for different lighting requirements.

See Life in True Light; The rarest Synchronization of aesthetics & efficiency. A LED  High  Mast  Light is  a  raised  source of High  illumination lights  (6~8 lights) and  with high  intensity on  the  middle of  major junctions  (Ring  roads, Outer Ring roads),  turned  on  or lit  automatically   in  the absence  of  light (at specified  timings or at  periodic times, every night).

Solar Home Lighting Kits are the perfect compact solution for an independent power supply in remote locations where electricity is unavailable, unreliable or expensive. All systems are professionally designed for Lighting purpose. Deepa’s Solar Home Lighting System (HLS) harnesses the sun’s energy to light up your home with benefits that extend both to your wallet and to the environment, Deepa’s Solar Home Lighting System is not only a Innovative creation but also a wise one. The Solar Home Lighting System, compact, portable and easily mountable, is an economical solution to all your power problems and comes in an easy-to-install kit.

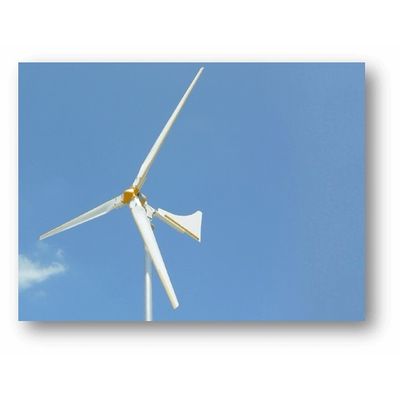

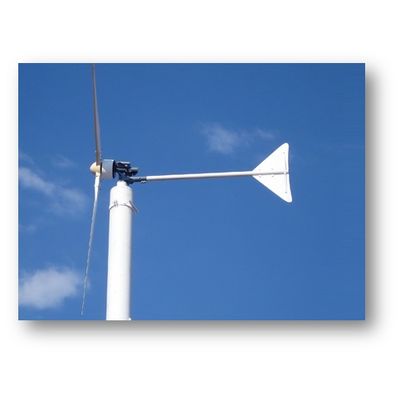

RATED OUTPUT: 5100W, RATED WIND SPEED m/s mph: 11/25, PEAK OUTPUT: 5400W, NUMBER of BLADES: 3, BLADE MATERIAL & Cp: Carbon Fiber Composite, ~ 0.37, GENERATOR: PM 3 phase alternator (variable speed), RPM- 50hz/60hz: 375/450, Over speed limit RPM / Hz: 525 / 70, YAW SYSTEM: Passive by tail Vane, YAW / Tower Cable: N x 3600, POLES: 16, SWEPT AREA: 21.4 /230 Sq. m / sq. feet, ROTOR DIAMETER: 5.24 m / 17.20 ft., GOVERNOR / over speed limit: Angle tilt (Hydraulic assisted), GOV. SHUT-DOWN / OPTIONAL STOP: Electro-dynamic Switch, UNIT WEIGHT (tower top): 99 kg., OPERATING LIFE: 20 yrs., SURVIVAL WIND: 55 m/s, SUGGESTED ROUTINE MAINTENANCE: Annual inspection.

RATED OUTPUT: 4200W, RATED WIND SPEED m/s mph: 11 / 25, PEAK OUTPUT: 4600W, NUMBER of BLADES: 3, BLADE MATERIAL & Cp: Carbon Fiber Composite, ~ 0.37, GENERATOR: PM 3 phase alternator (variable speed), RPM- 50hz/60hz: 375 / 450, Over speed limit RPM / Hz: 525 / 70, YAW SYSTEM: Passive by tail Vane, YAW / Tower Cable: N x 3600, POLES: 16, ROTOR DIAMETER: 3.2m / 11 ft., SWEPT AREA: 9.2 / 95 Sq. m /sq. ft., GOVERNOR / over speed limit: Angle tilt (Hydraulic assisted), GOV. SHUT-DOWN / OPTIONAL STOP: Electro-dynamic Switch, UNIT WEIGHT (tower top): 89 Kg., OPERATING LIFE: 20 Yrs., SURVIVAL WIND: 55 m/s, SUGGESTED ROUTINE MAINTENANCE: Annual inspection.

RATED OUTPUT: 1500W, RATED WIND SPEED m/s mph: 10.5 / 24, PEAK OUTPUT: 1700W, NUMBER of BLADES: 3, BLADE MATERIAL & Cp: Carbon Fiber Composite, ~ 0.37, GENERATOR: PM 3 phase alternator (variable speed), RPM- 50hz/60hz: 375 / 450, Over speed limit RPM / Hz: 525 / 70, YAW SYSTEM: Passive by tail Vane, YAW / Tower Cable: N x 3600, POLES: 16, ROTOR DIAMETER: 3.2m / 11 ft., SWEPT AREA: 9.2 / 95 Sq. m /sq. ft., GOVERNOR / over speed limit: Angle tilt (Hydraulic assisted), GOV. SHUT-DOWN / OPTIONAL STOP: Electro-dynamic Switch, GOV. SHUT-DOWN / OPTIONAL STOP: Electro-dynamic Switch, UNIT WEIGHT (tower top): 34 Kg., OPERATING LIFE: 20 Yrs., SURVIVAL WIND: 55 m/s, SUGGESTED ROUTINE MAINTENANCE: Annual inspection.

Traffic Control Signals are devices positioned at road intersections, pedestrian crossings and other locations to control competing flows of traffic.   Traffic signal displays help in showing the time remaining for the signal to change, allowing vehicle drivers to switch off their engines saving petrol and pollution.   Deepa Solar plays a vital role in contributing towards carbon footprint diminution and in saving petrol. This is made possible by installing the sought after Traffic Signals integrated by DSSPL.
