DelSolar Co., Ltd. products

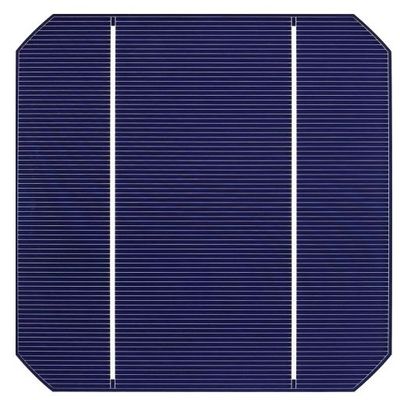

A full range of cell processing, including: Mono-crystalline Silicon-based cell. 6 inch cell size with 2 busbars. Wafer thickness of 180 to 200 µm. High efficiency and thin wafer handling capabilities: Dynamic optimized setting.  system. Soft-touch wafer handling system. Robust-in-house automation systems: Improved quality, efficiency and yield increase. Highly automated wafer transport system.

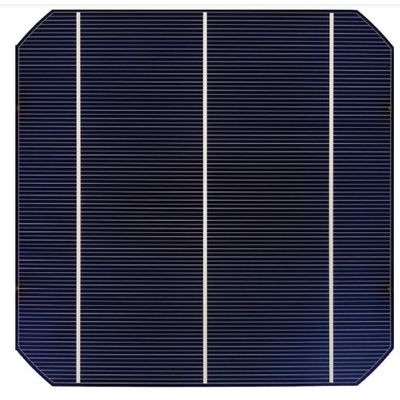

A full range of cell processing, including: Mono-crystalline Silicon-based cell. 6 inch cell size with 3 busbars. Wafer thickness of 180 to 200 µm. High efficiency and thin wafer handling capabilities: Dynamic optimized setting system. Soft-touch wafer handling system. Robust-in-house automation systems: Improved quality, efficiency and yield increase
Highly automated wafer transport system.

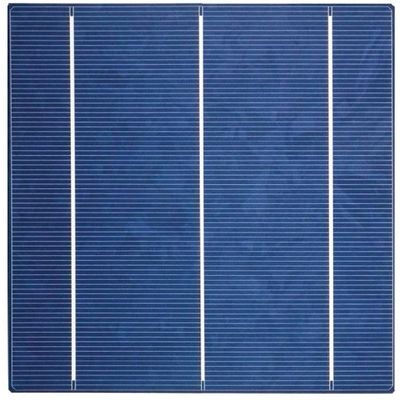

A full range of cell processing, including: Multi-crystalline Silicon-based cell. 6 inch cell size with 3 busbars. Wafer thickness of 180 to 200 µm. High efficiency and thin wafer handling capabilities: Dynamic optimized setting system. Soft-touch wafer handling system. Robust-in-house automation systems: Improved quality, efficiency and yield increase. Highly automated wafer transport system.

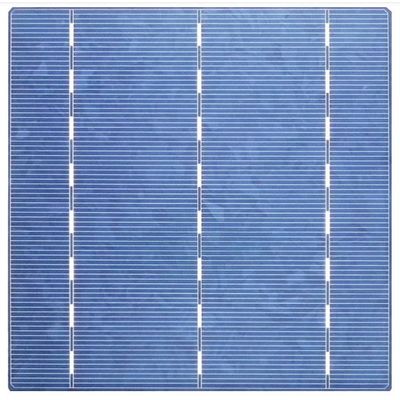

A full range of cell processing, including: Multi-crystalline Silicon-based cell. 6 inch cell size with 3 busbars. Wafer thickness of 180 to 200 µm. High efficiency and thin wafer handling capabilities: Dynamic optimized setting system. Soft-touch wafer handling system. Robust-in-house automation systems: Improved quality, efficiency and yield increase. Highly automated wafer transport system.

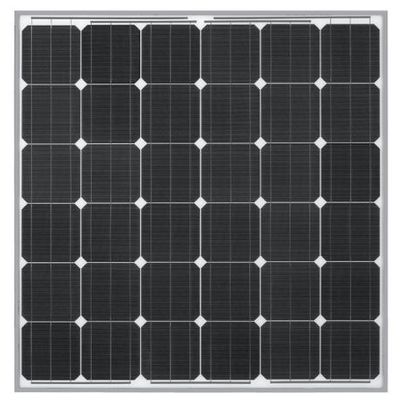

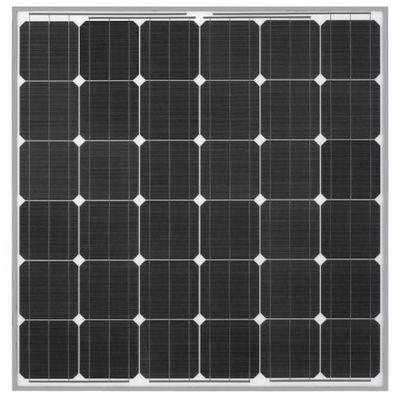

Positive power tolerance: 0~+4.99 watt. Withstand strong wind/snow load up to 5400 Pa. Pass ASTM E330: Maximum wind speed: 197 km/h (safety factor 3). Excellent low light performance: 4% relative eff. reduction at low-irradiance (200W/m2). PID resistant: Enhanced module reliability. 100% EL inline inspection: Better module reliability. Prolonged aging test: 2000 hours damp heat test; 400 thermal cycles. Certified ammonia resistance: According to IEC 62716 Ed. 1. Compliance with cadmium content test: According to IEC 62321.

Withstand strong wind/snow load up to 5400 Pa. Pass ASTM E330: Maximum wind speed: 197 km/h (safety factor 3). Excellent low light performance: 4% relative eff. reduction at low-irradiance (200W/m2). PID resistant: Enhanced module reliability. 100% EL inline inspection: Better module reliability. Prolonged aging test: 2000 hours damp heat test; 400 thermal cycles. Certified ammonia resistance: According to IEC 62716 Ed. 1. Compliance with cadmium content test: According to IEC 62321.

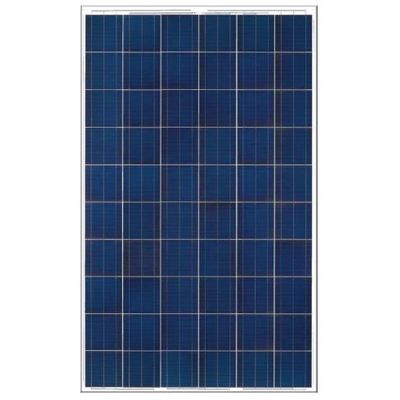

Positive power tolerance: 0~+4.99 watt. Withstand strong wind/snow load up to 5400 Pa. Pass ASTM E330: Maximum wind speed: 197 km/h (safety factor 3). Excellent low light performance: 4% relative eff. reduction at low-irradiance (200W/m2). PID resistant: Enhanced module reliability. 100% EL inline inspection: Better module reliability. Prolonged aging test: 2000 hours damp heat test; 400 thermal cycles.

Positive power tolerance: 0~+4.99 watt. Withstand strong wind/snow load up to 5400 Pa. Pass ASTM E330: Maximum wind speed: 197 km/h (safety factor 3). Excellent low light performance: 4% relative eff. reduction at low-irradiance (200W/m2). PID resistant: Enhanced module reliability. 100% EL inline inspection: Better module reliability. Prolonged aging test: 2000 hours damp heat test; 400 thermal cycles.

2 models are available with different junction box positions: GCB150-6P76FL0 (Junction box on the right). GCB150-6P76FL2 (Junction box in the middle).

2 models are available with different junction box positions: GCB170-6P86FL0 (Junction box on the right). GCB170-6P86FL2 (Junction box in the middle).
