The Dranetz HDPQ® Visa Plus (Portable) power quality analyzer offers the best value in power quality, demand, and energy monitoring from Dranetz, or any other Power Quality analyzer manufacturer! No other product at this price point comes close to matching the benefits and features provided by the Dranetz HDPQ Visa Plus! The Dranetz HDPQ® Visa Plus measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014 and more. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low and medium frequency transients through peak, waveshape, rms difference trigger methods. Applications include general purpose PQ, demand & energy monitoring, capacitor evaluations, harmonics & non-sinusoidal waveform troubleshooting and more. The Dranetz HDPQ Visa Plus enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and use either the VNC interface along with our Dran-View 7 software, or our Dranetz HDPQ Apple or Android Apps via Ethernet for remote control from anywhere with connectivity to the instrument.

The Dranetz HDPQ® Xplorer Plus (portable) power quality analyzer represents the top of the line in the Dranetz HDPQ Plus family of products. It is a true hand-held portable instrument with a built in 7″, tablet-like touch LCD display and is simply the best PQ monitor available from Dranetz, or any other manufacturer! The Dranetz HDPQ Xplorer Plus includes all of the features of the Dranetz HDPQ Visa Plus and Guide Plus power quality instruments, but adds high speed transient capture capabilities to 1us so you’ll never miss an event! The Dranetz HDPQ Xplorer Plus offers best in class PQ monitoring capabilities. It measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, and more. With its high speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse won’t miss a PQ event. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low-medium-high frequency transients through peak, waveshape, rms difference and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting. The Dranetz HDPQ Xplorer Plus enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and review data and control the instrument using either the VNC interface in our Dran-View 7 software or a free VNC client on your Smartphone or Tablet from anywhere with connectivity to the instrument.

The PQ3K is a cost effective monitoring solution that combines general purpose PQ detection (with waveform recording) and 4 quadrant energy monitoring in one instrument. Wide-ranging applications include utility, facility, manufacturing, petro chemical, mission critical and more. The PQ3K is housed in a 144mm x 144mm panel mounted enclosure with a high resolution, color TFT display. The PQ3K is fully compliant with IEC 61000-4-30 Edition 3 Class A for trustworthy PQ measurements. It can detect and record waveforms for sags/dips, swells, interruptions, as well as recording flicker, harmonics and more, all in parallel with complete energy metering capabilities. Digital I/O provides the ability to read alarms and provide state/condition based monitoring and alarming. IEC 61850, Modbus and Profinet are available for remote communications with 3^rd party SCADA and other monitoring systems.

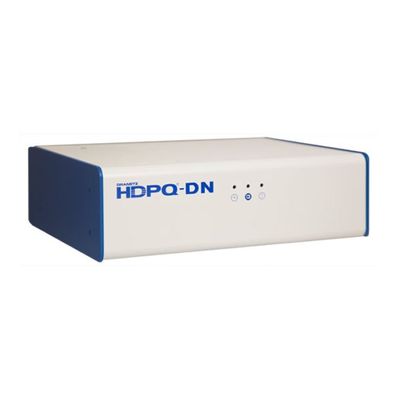

The Dranetz HDPQ-DN offers enhanced monitoring technology and meets the current internationally recognized PQ monitoring standards, including IEC 61000-4-30 Edition 3 Class A, IEEE 519:2014 and more. The advanced PQ monitoring capabilities from Dranetz enable you to detect PQ problems that other instruments may miss, such as negative transients, notching, intermittent switching & harmonics, and other problems that can only be captured using our proprietary waveform difference triggers. Applications include utility substation, capacitor bank evaluations, UPS/mission critical environments, medical imagery and more. Like all Dranetz HDPQ instruments, the HDPQ-DN offers a base sampling rate of 512 samples per cycle which offers the best base transient capture capability in the industry.

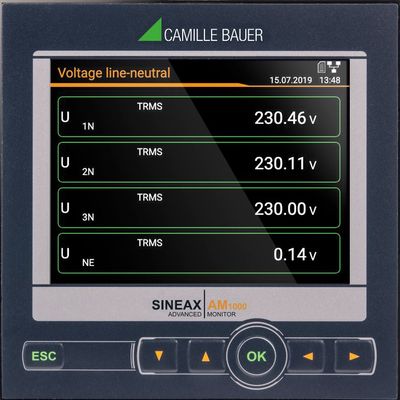

From sister company Camille Bauer, the AM1000 is an affordable, compact, panel mounted (96mm x 96mm), Class 1 meter to measure and monitor energy, power and process parameters. With its 3.5″ color display, optional web server and intuitive user interface, the AM1000 is simple and easy to use. The device includes a wide range of standard metering capabilities, along with optional extension modules to enhance its communications and I/O capabilities to meet the needs of a variety of applications. Optional communication capabilities include Ethernet, RS485, Modbus, PROFINET and IEC 61850. The AM1000 comes standard with 1 digital output and 1 digital I/O channel, plus 1 optional extension module to add relays, analog outputs, digital inputs, fault current detection, or temperature monitoring, The AM1000 was designed for universal use in industrial plants, building automation or in energy distribution.
