EGYTRAFO Group. products

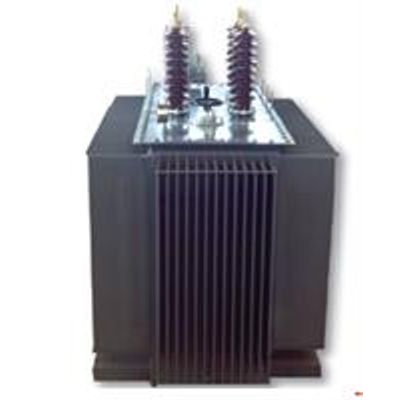

Oil Transformers - Oil Type Transformers in Egypt

EGYTRAFO Grp. produces wide range of oil transformers up to 15 MVA, 33KV suitable for indoor and outdoor installation and ambient temperatures up to 45oC. Types of Oil immersed transformer: A- Standard distribution transformers: Ratings from 25KVA to 3500 KVA with vector group Dyn 11. Pole mounted transformers/Pad mounted transformers/tep – up transformers/Step – down transformers B – Special Design Transformers: High rating up to 15000KVA, 33KV. Various number of taps for instance 5,7,9,12,,…….21……etc. Dual voltage transformers for both primary and secondary side. Testing transformers according to customer ratings and data. Isolating transformers according to customer ratings and data. Any connection group can be fulfilled on request. C – Earthing Transformers / Zigzag: D – Auto-Transformers: up to 600 A, up to 22 KV and more than 5 taping positions on request. – All products comply to IEC Standards – KEMA Certified

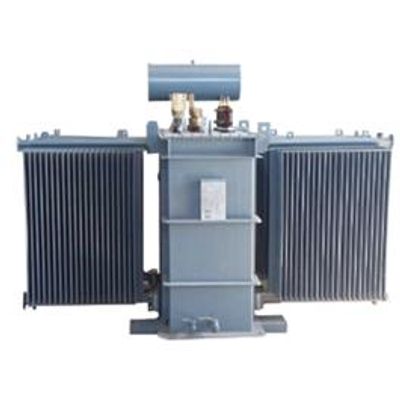

Auto Transformers - Egytrafo Group - Auto Transformers

Auto Transformers with (manual/automatic) tap-changing equipment are inserted as voltage regulators so that customers at the far end of the line receive the same average voltage as those closer to the source. The variable ratio of the Auto Transformer compensates for the voltage drop along the line Applications: you can use it as a safely starting machines such as induction motors and synchronous motors Also, boosters to give a small boost to distribution cable for compensating the voltage drop you can get the same advantage of the variac Advantages: Increased KVA rating for a given size and mass Less amount of copper Due to the smaller size, the cost is less compared to a two – winding transformer The resistance and reactance are less compared to a two – winding transformer and hence it has superior voltage regulation Volt-ampere rating is more compared to a two – winding transformer It is possible to get smooth and continuous variation of voltage

Dry type Cast Resin transformers - Egytrafo Group - Dry type Cast Resin transformers

EGYTRAFO Grp. produces a wide range of Dry type Cast Resin transformers up to 3.6MVA, 33KV which are suitable for indoor and outdoor installation (inside an enclosure with certain IP) and ambient temperatures up to 45oC. -Dry type transformers is a reliable alternative for oil immersed transformer with low running costs, free maintenance, environmental friendly and suitable for operation under heavy load fluctuations. *Different types: Impregnated LV, Casted HV. Casted LV, Casted HV. Al – Al windings (Aluminum). Cu – Cu windings (Copper). * Cooling Methods: Air Natural (AN). Air Forced (AF). Increased Power by 35-40 % * Field of Applications: Transportation means as railways underground, trams, and tunnels. Locations with vibrations and shocks (like ships and cranes). – All products comply to IEC standards – KEMA Certified

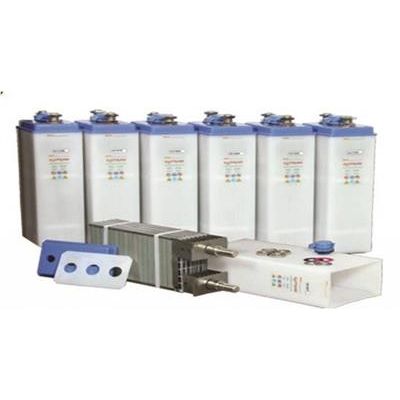

Nickel Cadmium Batteries - Egytrafo Group Ni-Cd

Nickel Cadmium Batteries (Ni-Cd) up to 800 Ah:- The block battery capacity is rated in ampere-hours (Ah) and is the quantity of electricity at +20°C (+68°F) which it can supply for a 5-hour discharge to 1.0 V after being fully charged for 7.5 hours at 0.2 C5 A. Cell voltage: The nominal voltage for this electrochemical couple is 1.2 V According to IEC 60623 Standards Different types:- * Low discharge cells (KPL) battery: The L type is designed for applications where the battery is required to provide a reliable source of energy over relatively long discharge periods, Normally, the current is relatively low in comparison with the total stored energy * Medium discharge cells (KPM) battery: The M type is designed for applications where the batteries are usually required to sustain electrical loads for between 30 minutes to 3 hours or for “mixed” loads which involve a mixture of high and low discharge rates. Active Material:- Nickel Hydroxide& Cadmium Hydroxide.
