Electrex products

Power Quality Energy Analyzer & Data Manager. Power quality analysis (EN 50160 and EN 61000-4-30). Accuracy class 0.5S and single harmonics up to the 51st order. Perennial, battery-powered astronomical clock / calendar and non-volatile memory. Remote firmware update. RJ45 and RS485 slave ports. Graphic LCD display. 2 digital inputs and 2 digital outputs with separate common. 1 calibration LED. ExpBus for external devices (inputs and outputs, environmental sensors). NFC equipped. Size 96×96. Power supply 85 ÷ 265Vac. Complies with EN 50470-1 + EN 50470-3.

Power Quality Energy Analyzer & Data Manager. Power quality analysis (EN 50160 and EN 61000-4-30). Network bridge between the RJ45 and RS485 ports for modbus communication with Electrex instruments in the subnet. Including the following upgrades: n. 2 PFSU940-01 Log 8, n. 1 PFSU940-25 Open Log, PFSU940-05 Web. Accuracy class 0.5S and single harmonics up to the 51st order. Perennial, battery-powered astronomical clock / calendar and non-volatile memory. Remote firmware update. Graphic LCD display. 2 digital inputs and 2 digital outputs with separate common. 1 calibration LED. ExpBus for external devices (inputs and outputs, environmental sensors). NFC equipped. Size 96×96. Power supply 85 ÷ 265Vac. Complies with EN 50470-1 + EN 50470-3.

 Energy Analyzer & Data Manager. Accuracy class 0.5S and single harmonics up to the 51st order. Astronomical, perpetual, battery powered clock / calendar and non-volatile memory. Firmware update remotely. RJ45 and RS485 slave ports. FSTN graphic display. 2 digital inputs and 2 digital outputs. 1 calibration LED. ExpBus for external devices (inputs / outputs, environmental sensors). NFC connectivity. Flush mount 96 x 96 mm. Power supply 85÷265Vac.

Power Quality Energy Analyzer & Data Manager. Power quality analysis (EN 50160 ed EN 61000-4-30). Accuracy class 0.5S and single harmonics up to the 51st order. Astronomical, perpetual, battery powered clock / calendar and non-volatile memory. Firmware update remotely. RJ45 and RS485 slave ports. FSTN graphic display. 2 digital inputs and 2 digital outputs. 1 calibration LED. ExpBus for external devices (inputs / outputs, environmental sensors). NFC connectivity. Size: 96×96. Power supply 85÷265Vac.

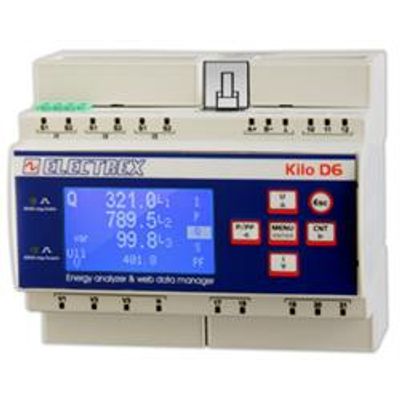

 Energy Analyzer & Data Manager. Accuracy class 0.5S and single harmonics up to the 51st order. Astronomical, perpetual, battery powered clock / calendar and non-volatile memory. Firmware update remotely. RJ45 and RS485 slave ports. FSTN graphic display. 2 digital inputs and 2 digital outputs. 2 calibration LEDs. ExpBus for external devices (inputs / outputs, environmental sensors). NFC connectivity. DIN rail mount 6 modules. Power supply 85÷265Vac.

Single / three-phase energy analyzer suitable for harsh environments. With white / blue backlit graphic LCD display. Measurement of the THD on voltage and current, of the neutral current, maximum and minimum voltage, maximum current and power and of the active energy of each phase. Four operating time counters of the monitored load. 2 calibration LEDs. RS485 interface. Size 6 DIN rail modules. 230Vac power supply. Complies with EN 50470-1 + EN 50470-3.

Single / three-phase energy analyzer suitable for harsh environments. With white / blue backlit graphic LCD display. Measurement of the THD on voltage and current, of the neutral current, maximum and minimum voltage, maximum current and power and of the active energy of each phase. Four operating time counters of the monitored load. 2 calibration LEDs. RS485 interface. 2 digital inputs and 2 outputs with separate common terminals. Size 6 DIN rail modules. 230Vac power supply. Complies with EN 50470-1 + EN 50470-3.

Single / three-phase (or up to 3 single-phase loads) transducer / energy analyzer. Measurement of the THD of voltage and current, neutral current, maximum and minimum voltage, maximum power and current, active energy of each phase. Phases sequence on Modbus register. Four operating time counters of the monitored load. 1 calibration LED. RS485 interface. Firmware update remotely. Size: 4 DIN rail modules. Power supply 230-240Vac. Complies with: EN 50470-1 + EN 50470-3.

 Power Quality Energy Analyzer & Wi-Fi Web Data Manager. Wi-Fi communication via external antenna  cod. PFC3530 (included). Power quality analysis (EN 50160 and EN 61000-4-30). Network bridge between the RJ45 and/or Wi-Fi port and RS485 port for Modbus communication with other Electrex devices in the subnetwork. Includes the following upgrades: n. 2 PFSU940-01 Log 8, n. 1 PFSU940-25 Open Log,  PFSU940-05 Web. Accuracy class 0.5S and single harmonics up to the 51st order. Astronomical, perpetual, battery powered clock / calendar and non-volatile memory. Firmware update remotely. FSTN graphic display. 2 digital inputs and 2 digital outputs. 2 calibration LEDs. ExpBus for external devices (inputs / outputs, environmental sensors). NFC connectivity. DIN rail mount 6 modules. Power supply 85÷265Vac.

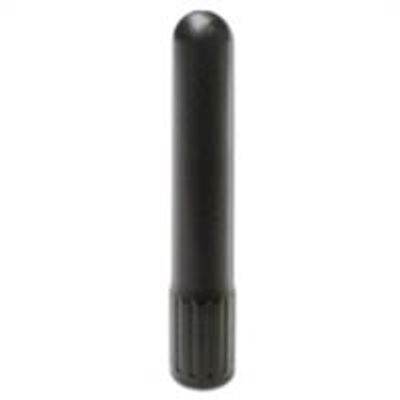

 Antenna dual band stilo SMA. Suitable for the Yocto net Coordinator, Router and Bridge in the EDA versions and the Yocto gate. Can be installed distant from the devices using the extension cable PFC3565 with a Yocto Gate and the PFC3568 or PFC3569 with a Yocto net. The small size gives the antenna versatility of use, simplicity of installation even in containers (unshielded) maintaining an optimal signal quality.
