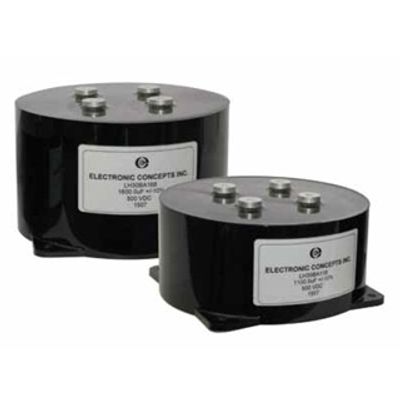

The UNLYTIC LH3 series film capacitor employs Lo-Henry™ technology to minimize Equivalent Series Inductance (ESL). This advanced capacitor features a compact terminal layout, reducing overall bus bar dimensions, which is crucial for keeping system costs low. Encapsulated in a specially formulated potting compound, it achieves enhanced thermal performance. The capacitor's housing is constructed from high strength thermoplastic, making it resilient to high shock and vibration environments. It boasts a wide operating temperature range from -55°C to +105°C, and can endure a DC potential of 1.3 times its rated voltage for one minute without damage. The intrinsic dissipation factor is less than 2.1 x 10-4 at frequencies up to 1 MHz. These specifications make the LH3 series suitable for demanding applications in inverter systems.

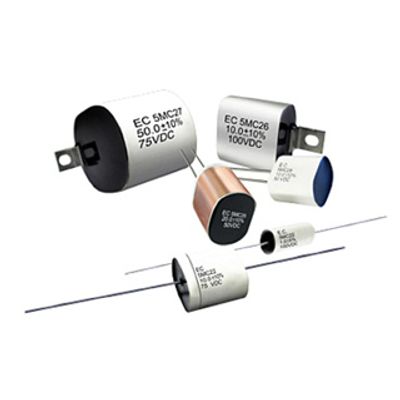

The 5MC Series Metallized Polycarbonate Film Capacitor is developed by Electronic Concepts specifically for use in switch-mode power converters. This miniature capacitor helps conserve printed circuit board space due to its compact configuration. It features low equivalent series resistance (ESR), substantial ripple current capability, and a high resonant frequency, making it ideal for switch-mode applications. The capacitor offers a capacitance range and tolerance suitable for various power conversion needs. Its robust design ensures dielectric strength, with the ability to withstand DC potential of 150% rated voltage for two minutes without damage. Performance remains stable across a temperature range of +25°C to +125°C with a dissipation factor not exceeding 0.3% at 1000 Hz. Inspection and quality control measures are strictly followed, and detailed process data is available upon request.

The LH3 series film capacitor from Electronic Concepts incorporates Lo-Henry™ technology, designed specifically for next-generation inverter applications. Utilizing a coaxial film configuration, this capacitor boasts extremely low inductance (ESL), significantly reducing system costs by allowing for a more compact terminal layout and minimizing buss bar dimensions. This series is encapsulated in a specially formulated potting compound to enhance thermal capabilities, and it is housed in high-strength thermoplastic, providing resilience in high-shock and vibration environments. The LH3 series conforms to rigorous quality control standards, capable of withstanding a DC potential of 1.3 times the rated voltage for one minute without damage, and maintaining a dissipation factor of less than 2.1 x 10^-4 across a wide temperature range of -55°C to +105°C up to frequencies of 1MHz.

The 5PT series capacitors by Electronic Concepts are designed to meet the elevated current carrying needs of resonant power circuits. These capacitors excel in performance due to their ability to handle higher current at lower capacitance values, which provides circuit designers with greater reliability and performance in their systems. The innovative construction features heavy metal electrodes arranged in a densely packed configuration, uniquely developed by Electronic Concepts. This design allows the capacitors to extract significantly higher current per microfarad (MFD) at rated voltage compared to other brands. The capacitors can withstand a DC potential of 1.5 times the rated voltage for one minute without sustaining damage or breakdown, with test voltage applied and discharged through a minimum resistance of 100 ohms per volt. The dissipation factor of these capacitors is less than 0.5% when measured at the specified frequency for capacitance measurement.
