EMD Technologies products

A modular generator with power inverters allowing smart power output management, using between 3 and 6 Inverters for up to between 45 to 80-kW power output. As a function of the X-ray room, the generator accepts up to four (4) expansion boards to provide greater adaptability or more functionalities.

A modular generator with power inverters allowing smart power output management, using 3 or 4 Inverters for a tube power varying from 45 to 80 kW. As a function of the X-ray room, the generator accepts up to four (4) expansion boards to provide greater adaptability or more functionalities.

New family of generators, with 50-kW or 65-kW output power, with built-in electric cabinet.

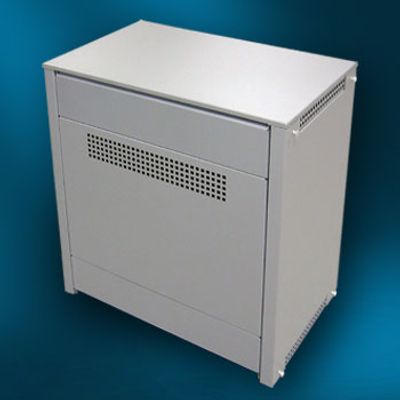

This high quality Epsilon cabinet provides the Epsilon High-Voltage Generator with perfect mechanical enclosure and insures complete safety of the installation. It is made out of light-weight panels easily assembled using simple tools. The cabinet exists in two versions.

The EPS 45-80 RF High-Voltage generator main characteristics are: Very high output frequency of up to 240 kHz. Solid state high-voltage modules (no oil) permitting small dimensions and reduced weight. 19”-rack compatibility for installation inside OEM cabinets. Electric cabinet available. Modular design allowing to grow an existing generator from 45 kW to 50 kW to 65 kW to 80 kW with the simple addition of Inverter Boards. Exceptionally high efficiency resulting in reduced mains line impedance requirements and power consumption. Leading-edge self-diagnostic capabilities and fast auto-tube calibration. Extremely sharp rise times and fall times unparalleled by any other generator on the market.

The EPS 45-80 CV High-Voltage generator main characteristics are: Ultra-high output frequency of up to 240 kHz. Solid state high-voltage modules (no oil) permitting small dimensions and reduced weight. Modular design allowing to grow an existing generator from 45 kW to 50 kW to 65 kW to 80 kW with the simple addition of Inverter Boards. Exceptionally high efficiency resulting in reduced mains line impedance requirements and power consumption. Leading-edge self-diagnostic capabilities and fast auto-tube calibration. Extremely sharp rise times and fall times unparalleled by any other generator on the market.
