Enetics, Inc. products

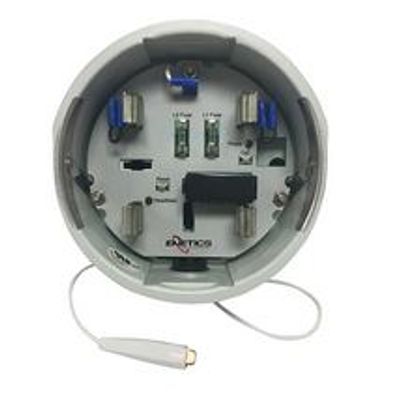

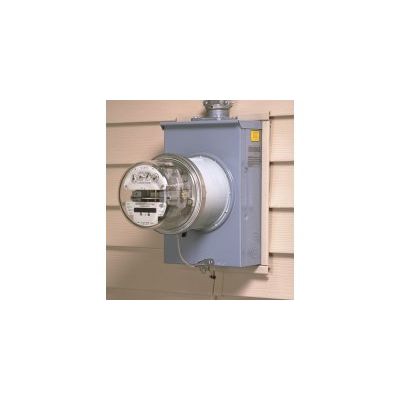

The LM-1312 is a Form 2S residential meter adapter recorder designed to simply plug into a meter base to simultaneously record more than 30 energy parameters along with harmonics, disturbance events, waveform capture, and flicker.  The unit has captive internal CT’s making installation and current measurement easy and can be programmed to send real time notification when a measured condition exceeds a user-programmed threshold. Data is kept in the meter in non-volatile flash memory so that no data is ever lost and there is no battery maintenance required to preserve recorded data.

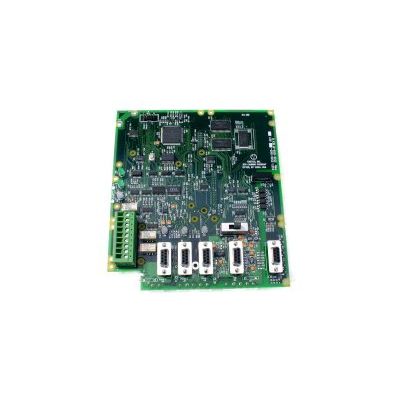

The LM-5300 series comprises two unique 3-phase 600v board configurations and three embedded software packages (Models LM-5310/15 and LM-5320) each capable of simultaneously recording 4 voltages, 4 currents with events and power consumption. The 5315 and 5320 add harmonic and waveform capture capability. The fourth voltage and current channels allow neutral-ground voltage and neutral or ground current to be recorded. The emphasis is on meeting practical power monitoring needs for volume Original Equipment Manufacturers that have their own existing packaging platform.  Please contact Enetics for complete details. Monitoring and analysis capabilities track those of Enetics` own line of recorder / analyzers.

The LM-5400 series comprises two unique 3-phase 600v recorders (Models LM-5410 and LM-5415) each capable of simultaneously recording 4 voltages, 4 currents with events and power consumption. The 5415 adds full power quality analysis including harmonic and waveform capture capability. The fourth voltage and current channels allow neutral-ground voltage and neutral or ground current to be recorded. The emphasis is on meeting practical power monitoring needs by providing all the features required by your front-line personnel yet at an attractive cost.

The LM-5500 series comprises three unique 3-phase 600v recorders (Models LM-5510, LM-5515, and LM-5520) each capable of simultaneously recording 4 voltages, 4 currents with events and power consumption. The 5515 and 5520 add full power quality analysis features including harmonic and waveform capture capability. The 5520 also has load control relay outputs.  The fourth voltage and current channels allow neutral-ground voltage and neutral or ground current to be recorded. The emphasis is on meeting practical power monitoring needs by providing all the features required by your front-line personnel yet at an attractive cost.

The LD-1200 Field Recorder collects data at the breaker panel location and is designed to be used in situations where installation at the meter base is either not possible or not permitted. Periodically this data is uploaded for processing using Enetics` SPEED algorithm, which produces energy consumption interval data for each major appliance in the residence.

Enetics energy monitoring recorders provide a cost effetctive solution to monitor power quality and flicker. Available in Class A, Class S, single phase or three phase, we are sure to have the solution you need to improve troubleshooting and customer service. Take a look at the hardware comparison chart below, just click on the + sign to the right.
