Exhaust gas heat exchangers are used in order to increase the degree of efficiency of stationary engines which, for instance are found in combined heat and power (CHP) plants. The energy from the cooling of the exhaust gas is usually used for heating water or thermal oil.

Similar in principle to the exhaust gas heat exchanger, energy is extracted by the steam generator from the engine exhaust gases. Here the aim is to generate saturated steam. The typical range of applications is between 1 bar(g) and 25 bar(g).

The life of engines in combined heat and power systems is substantially increased by gas preparation plants as pollutants and moisture are withdrawn in a targeted manner. Our heat exchangers are specially suited for the preparation of biogas and sewage gas. These are used in small plants with approx. 50 Nm³/h as well as plants up to 2000 Nm³/h gas throughput.

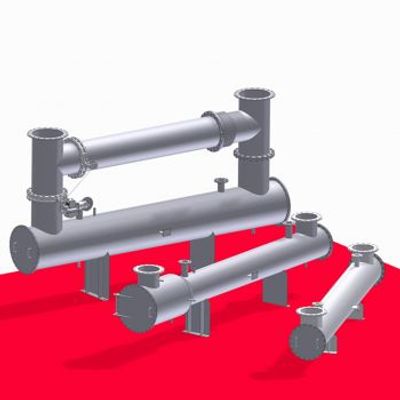

The application possibilities and shapes of heat exchangers are many-sided. Because of our technical expertise, which we have gathered in our many years in the field of building heat exchangers, we can offer you the optimum solution for many applications.

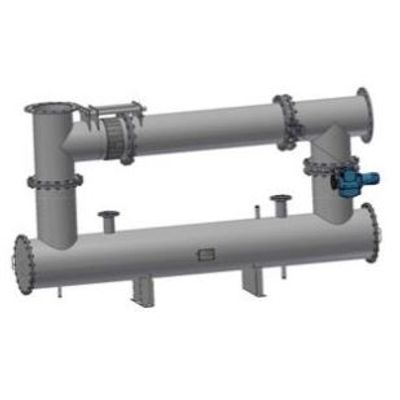

Engine type: MWM TCG2032 V12. Thermal output: 1860 kW. Dimensions: 630 x 120 x 170 cm. Weight: 4300 kg.

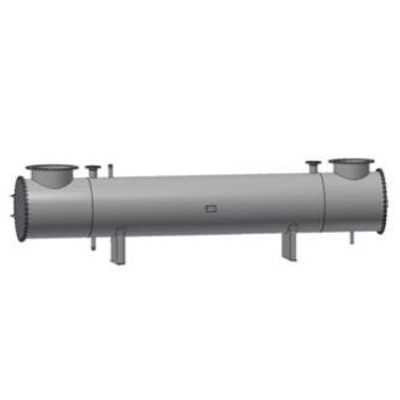

Engine type: Jenbacher J420. Thermal output: 600 kW. Dimensions: 380 x 120 x 250 cm. Weight: 1200 kg.

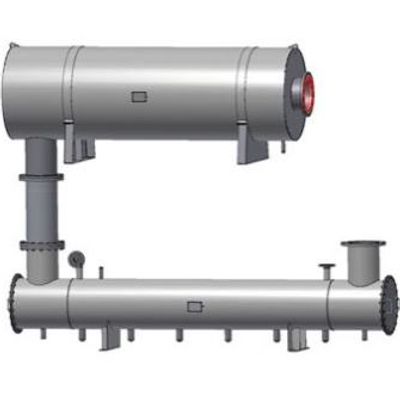

EGHE 1 with EGHE 2. Engine type: Caterpillar CG170-12. Thermal output: 629 kW + 208 kW. Dimensions: 520 x 240 x 120 cm.
Weight: 1500 kg + 1700 kg.

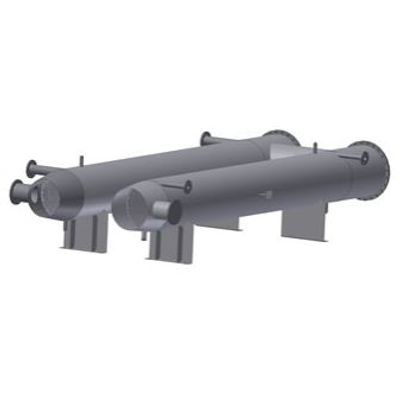

Hot water application. Engine type: Jenbacher J420. Thermal output: 550 kW. Dimensions: 400 x 80 x 110 cm. Weight: 1150 kg.

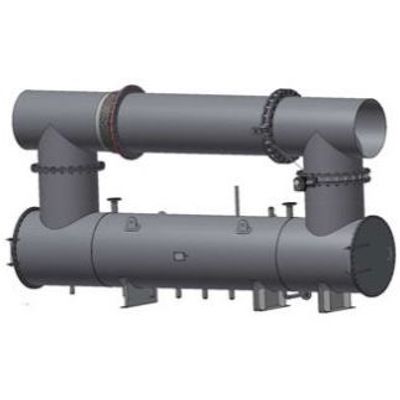

EGHE with silencer. Engine type: MWM TCG2020 V12. Thermal output: 500 kW. Dimensions: 430 x 100 x 340 cm. Weight: 1650 kg.

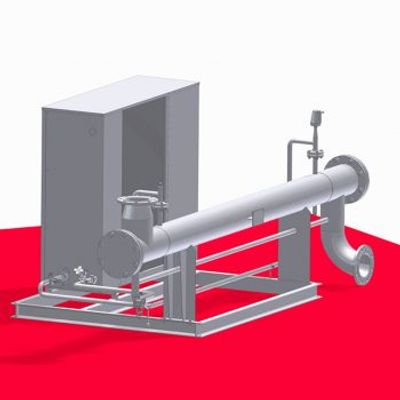

Hot water application. Turbine: Capstone CR800. Thermal output: 810 kW. Dimensions: 560 x 180 x 300 cm. Weight: 4400 kg.
