Ensto Group products

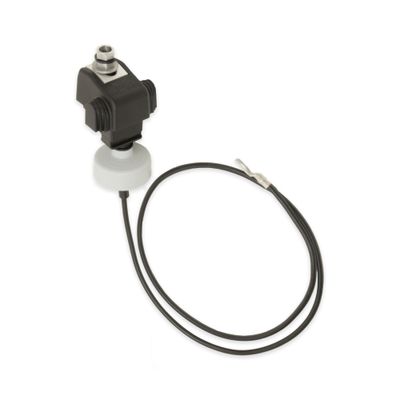

The SE45.1 connector is intended to connect a surge arrester to insulated aluminium or copper conductors up to 1000V AC. Design of connector enables hot line installation without peeling insulation from conductor.

SE45.275-15 includes a new piercing connector specially designed for surge arrester. This connector is used when installing the surge arrester on insulated LV overhead lines. It can be installed on insulated Al/Cu conductors with cross section range 10-150 mm². Continuous operating voltage 275 V. The surge arrester comes with earthing conductor which is 6 mm² Cu wire (1 m) and equipped with M8 cable lug.

The Ensto Phase Balancer is designed to solve power quality problems in weak, 3-phase low-voltage distribution networks. It mitigates phase imbalances, reduces voltage flickers and harmonics, enables fast disconnection of power from the affected consumer connection point, and maximizes the utilization of existing low-voltage power distribution capacity.

Ensto Voltage Controller is a cost-efficient solution for correcting unwanted voltage variation in low voltage 1-phase networks. It is installed close to the consumer connection point, where it measures the feeding line voltage and automatically stepwise increases or decreases the output voltage.

Heavy Duty Distribution Class Surge Arrester with various options for indoor/outdoor installation on systems up to 36 kV

Heavy Duty Distribution Class Surge Arrester with various options for indoor/outdoor installation on systems up to 36 kV.

Opening and closing under severe weather conditions, and easy installation on poles thanks to its high level of integration (MV transformer embedded in the SF6 chamber). Two equipment in one, a load break switch and a disconnector. Rescue manual command by a telescopic adjustable linkage or by a 3 positions hook stick command. Maintenance free. Consult us to define your needs (options, packaging, etc.).

Station Class Surge Arrester with various options for indoor/outdoor installation on systems up to 170 kV.

High Voltage Surge Arrester VARISIL™ HTS 150 - 204 kV.
