Entropie GmbH products

ENTROPIE boiler TT50 is a two-pass flame tube/smoke tube industrial hot water boiler made of steel. The boiler can be manufactured in the power range from 210 kW to 2000 kW. The boiler is designed to produce hot water with a maximum temperature of 115°C and a maximum excess working pressure of 6 bar. Fuel type: gas or light liquid fuel.

ENTROPIE boiler TT100 FOR GREENHOUSE FARM is a three-pass flame tube/smoke tube industrial hot water boiler with low hydraulic resistance and a large combustion volume minimizes nitrogen oxide emissions into the atmosphere. Hot water boiler with a capacity of up to 12.1 MW. The boiler is designed to produce hot water with a maximum temperature of 115°C and a maximum excess working pressure of 6 bar.

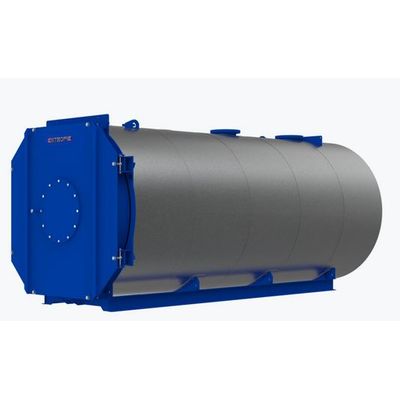

ENTROPIE boiler TT100 is a three-pass flame tube/smoke tube industrial hot water boiler made of steel. The boiler can be manufactured in the power range from 1 MW to 20 MW. The boiler is designed to produce hot water with a maximum temperature of 115°C and a maximum excess working pressure of 6 bar. Fuel type: gas or light liquid fuel.

ENTROPIE TT200 steam boilers are steel gasfired, three-way flue gas boilers of horizontal type, fitted with a firebox for pressure-fired fuel combustion. ENTROPIE boiler TT200 are mass produced within a rated steam capacity range from 0,5 to 30 t/h with a design pressure of 8, 12, 16 bar and are designed to produce saturated steam.

ENTROPIE TT200 steam boilers are steel gasfired, three-way flue gas boilers of horizontal type, fitted with a firebox for pressure-fired fuel combustion. ENTROPIE boiler TT200 are mass produced within a rated steam capacity range from 0,5 to 30 t/h with a design pressure of 8, 12, 16 bar and are designed to produce saturated steam.

ENTROPIE TT200 steam boilers are steel gasfired, three-way flue gas boilers of horizontal type, fitted with a firebox for pressure-fired fuel combustion. ENTROPIE boiler TT200 are mass produced within a rated steam capacity range from 0,5 to 30 t/h with a design pressure of 8, 12, 16 bar and are designed to produce saturated steam.

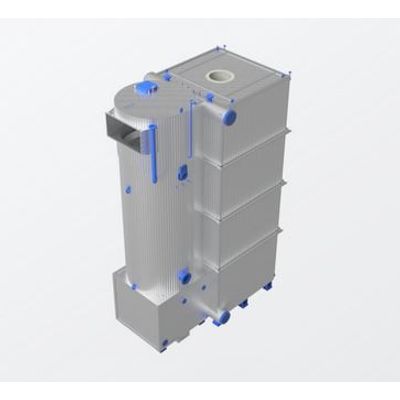

ENTROPIE TT300 is a water-tube industrial hot water boiler. The boiler can be manufactured in the power range from 20 MW to 80 MW. The boiler is designed to produce hot water with a maximum temperature of 170°C and a maximum excess working pressure of 16 bar.

ETM-series two-stage atmospheric pressure deaerators with a submerged bubbler device are designed to remove corrosive gases (oxygen and free carbon dioxide) from steam boilers’ feedwater and from heat supply systems’ make-up water. Deaerator is used in the capacity of the final-stage in steam boilers’ water treatment systems.

Separate steel economizers are used as tail surfaces for heating steam boilers with maximum operating pressure of 1.6 MPa (16 kgf/cm²) and are designed to heat feedwater through the medium of the heat of exhaust flue gases.

Steam superheater is essentially a heat exchanger connected to exhaust gas lines of the second pass steam boiler on the heating side and to the saturated steam line on the side being heated.
