FIMER S.p.A. products

String Inverters

The Better Battery

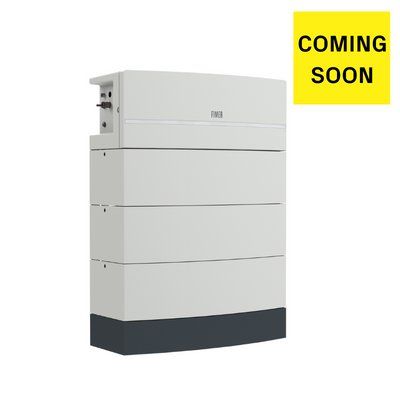

FIMER PowerX offers the highest residential storage capacities on the market. Thanks to its high-voltage modular battery format, PowerX provides a flexible option for any energy storage requirement, up to a maximum of 48 kWh. Small overall footprint, allows installation on wall or on floor stand. Simpler handling, thanks to the single module weight of only 33 kg.

Photovoltaic Energy Storage System

REACT 2 is FIMER’s photovoltaic energy storage system, allowing to store excess energy and optimize the energy use in residential applications. The REACT 2 energy storage solution includes a high-voltage Li-ion battery with a long life and a storage capacity of up to 12 kWh. The modular solution can grow with the needs of any household from 4 kWh to 12 kWh and significantly reduce electricity charges thanks to an achievable energy self-reliance of up to 90 percent. Thanks to the possibility of both AC and DC side connection, REACT 2 is the ideal solution for new systems or the retrofitting of existing ones, allowing homeowners to improve their energy self-consumption and save on their energy bills.

Central Inverters

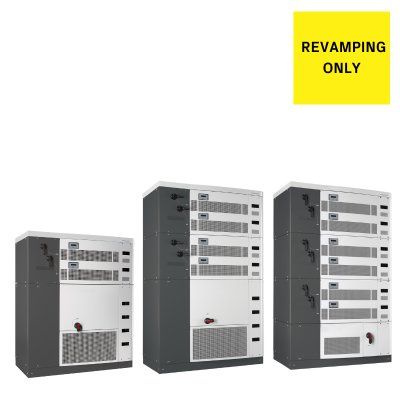

FIMER’s central inverters are extremely scalable, modular inverter systems that are based on 55 kW modular blocks. This increases usable power and improves availability. The reduction of performance in any individual module will not impact the energy harvesting capabilities of the other modules. The product is available with and without a transformer. The industry leading power conversion efficiencies of up to 98% (-TL), combined with high-speed Maximum Power Point Tracking (MPPT) channels, optimize energy harvesting across a wide array of operating conditions. These commercial inverters provide maximum DC input voltage up to 1000 Vdc, high design flexibility and reduced DC distribution losses for large scale PV plants.

Central Inverters

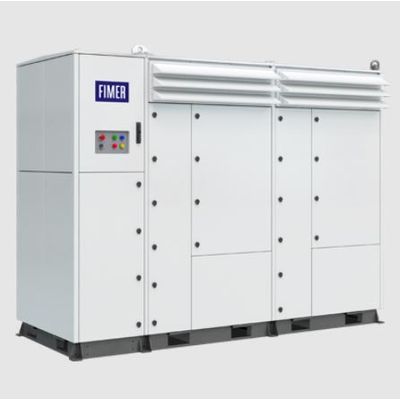

The PVS980-58 inverter is one of the most efficient and cost-effective ways of converting the direct current (DC) generated by solar modules into high quality and CO2-free alternating current (AC) that can be fed into the power distribution network. Like other FIMER central inverters, the PVS980-58 has been developed on the basis of decades of experience in the industry and proven technology platform. PVS980-58 central inverter is available from 1818 kVA up to 2300 kVA, and are optimized for cost-effective, multi-megawatt power plants. The high DC input voltage, high efficiency, proven components, compact and modular design and a host of life cycle services ensure FIMER PVS980-58 central inverters provide a rapid return on investment.

Turnkey Stations

The PVS-100/120-MVCS is an integrated product specifically engineered for decentralized solar plants realized with FIMER PVS-100/120 string inverters. The solution allows to connect up to 26 inverters for a maximum power of 3.1 MVA. The MVCS includes an optimized MV oil-immersed transformer, MV gas-insulated switchgear, all necessary LV protections and connections to attach the solar array and a set of available auxiliary services with independent auxiliary power. Components are part of FIMER`s portfolio, ensuring the highest standards of quality, performance and durability.
