Fluitec - Mixing + Reaction Solutions AG products
Mixer/Heat Exchanger
Fluitec - Sterile Heat Exchanger
Fluitec sterile equipment is specially constructed for the greatest possible separation between the primary and secondary media, with practically total dranage on the product side. Fluitec sterile shell and tube heat exchangers are therefore ideally suited to CIP/SIP plants. A special surface treatment technique, plus seamless pipes with electropolished interiors, results in surface roughness as low 0.4 µm on the product side. Fluitec constructs the sterile-heat exchanger in licence of Calorifer Engineering AG.

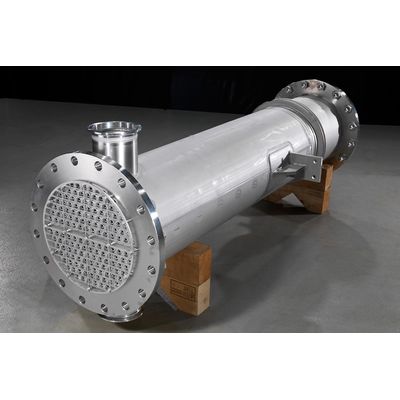

Fluitec - Multitube Heat Exchangers
Multitube heat exchangers with mixing elements in the multitubes are ideal for product viscosities between 50 and approximately 500 mPas. Various static mixing elements can be installed in the multitubes depending on the heat transfer application. These elements increase the heat transfer from the product to the tube wall, so that smaller sizes can be realised than if the multitube heat exchanger has no mixing elements. Multitube heat exchangers are not suitable for processeswhere the residence time is critical or for cooling tasks where the viscosity increases significantly (risk of maldistribution). The Fluitec CSE-XR® mixer / heat exchanger is recommended as an alternative for these applications.
