Fuel Storage Systems LTD products

Stainless steel construction. LCD display with LED back light. Fuel pump speeds: 50,70 or 90 litres per minute. Suitable for pumping Diesel, Gas Oil, Adblue & Bio Diesel up to B30. Available as mono or twin fuel pump High accuracy 4 piston meter +/- 0.25%. Heavy duty fuel pump unit with air separator. Integral pulse transmitter 10:1 or 100:1 for connection to FMS. ZVA automatic nozzle. 4M steel braided hose with safety breakaway coupling 2-year parts warranty. Dimensions: 1245mm H x 550mm W x 530mm D. ATEX approved for use with Diesel Pumps - Certificate Number: CML 15ATEX9183.

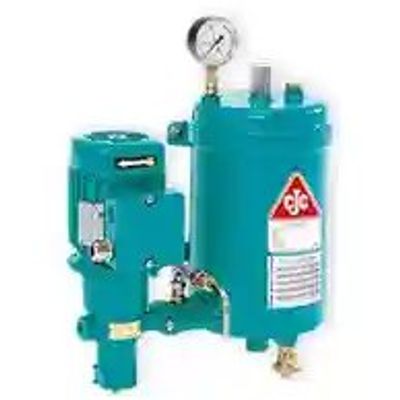

Circulates & prevents degradation of fuel inside storage tanks. Passes through a pre filter fuel conditioner to prevent microbial growth. Fuel is automatically circulated on a pre set timer moving the fuel content around at a rate of 5,000 litres per day Can be linked to our remote warning device. External alarm outputs, rated at 230VAC 10A max. For use with Diesel & Gas Oil. Features a 230V pump unit, inlet strainer, fuel conditioner, flow switch, filter clogged warning light, timer & mains junction box. Mounted on a wall/tank mounting plate. Weatherproof for outdoor use. Optional particle & water filter. storage tanks up to 65,000L (5,000 litres per day).

Models: 15-25/27-27. Flow Rate Up to 90 L/min. Frame Stainless Steel. Finish Brushed. Voltage 240 VAC ± 5%. Frequency 50 Hz ± 2%. Current 6 Amps. Switch Overload contactor. Power 1.38 KW. Overload 4-10 Amp. Pump Self priming volumetric rotating vane pump. Duty Cycle Continuous. Noise Level
