Gastreatment Services (GTS) products

The gas released in landfill processing is increasingly often used for the production of electricity. However, this biogas cannot be used immediately for application in utilizing equipment as it is often too wet and contains various contaminants such as siloxanes. To resolve this problem, Gastreatment Services (GtS) has developed the TCR system to remove all contaminants from the biogas.

Gastreatment Services (GtS) has three types of flares, which we export worldwide. Our flares are individually designed for the capacity specified by the NER. The ATEX, CE and PED guidelines are followed for this as standard.

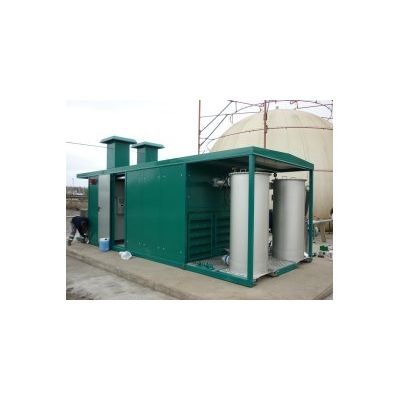

This installation is built from the following parts: Inlet valve. Gas/gas heat exchanger. Gas/water heat exchanger. Cold water machine. Coalescing filter. Gas pressure regulation with safety shut off valve. Outlet valve. Pressure regulator and pneumatic blow down valve. Condensate storage with pump. Instrumentatation (manometers etc.). Container.

The secondary network is heated from the geothermal installation. With this warm water, the heat is supplied to the grower in the collection station.

Most often they try to utilize biogas in various applications such as (bio) gas engines for the production of electricity and heat (CHP), hot water / steam boilers for supplying heat to business processes, biogas processing plants that process the biogas into green gas that is suitable for injection into the natural gas network or for upgrading to liquid biogas (LBG), as a fuel for buses and trucks.

The by GtS developed GTP-filter is an "all-in-one" system combining: gas cooling/drying, reheating and filtering in one body. The GTP-filter protects your downstream equipment such as CHP (Combined Heating & Power) & boiler installations against the destructive effects of wet and sour Biogas. For further H2S removal the GTP can be installed upstream a vessel with activated carbon for H2S removal to reduce the relative humidity of the biogas to the optimal value for H2S removal with activated carbon. We provide standard biogas dryer modules from 10 ~ 1850 Nm3/hr, other capacities on request. We provide standard modules 10 ~ 1850 Nm3/hr, other capacities are on request.
